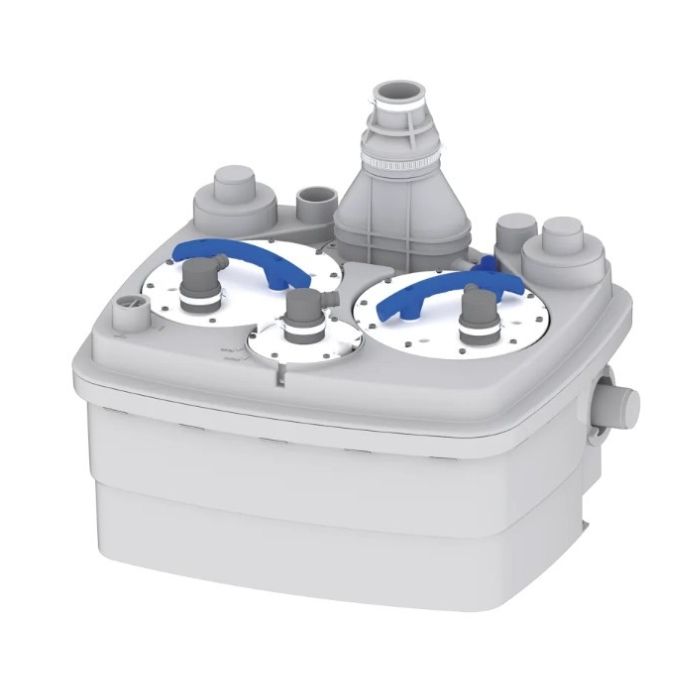

Saniflo Sanicubic 2 Pro WP SA104WP is a high performance macerating lifting station for commercial and intensive residential use. Twin motor load balanced system utilizing high performance stainless steel cutter technology. IP68 submersible rating shredder technology which reduces clogging. In addition, its two motors make it possible to remain in operation in all conditions, its 5 inlets make it possible to connect it to all the sanitary facilities required.
The Sanicubic tank is fitted with 2 dip tubes; one tube controls motor operation and the other controls the alarm system: Long pickup tube (normal operation): as soon as the waste water level in the tank reaches the triggering point in the long tube, the pumping system starts up. Short pickup tube (inflow overload operation): if the waste water level in the tank reaches the upper point, a contact is closed and the auxiliary pumping system is triggered. The contact also sets off an audible and visual alarm.
Buy Online Saniflo Sanicubic 2 Pro Pump Lift Station SA104
Saniflo Sanicubic 2 PRO WP Macerator Pumping Station SA104WP Commercial
FREE SHIPPING
MOST AREAS ORDER OVER $300
$5,032.50
Excl. GST:
$4,575.00
Excl. GST:
Code : 1628155
FREE SHIPPING MOST AREAS ORDER OVER $300
Made in France to the highest standards, must be installed by a licensed plumber. EN 12050-3 and WaterMark approved
High performance macerating lifting station for commercial and intensive residential use
Capable of discharging waste from multiple toilets and other grey waste water appliances
Ideal for busy business environments and larger domestic situations
Tough, reliable macerator pump
New design with easily removable motor for servicing and maintenance
Water level indicator unit can be easily removed for maintenance
Load balanced twin macerator pumps for a fail safe system
Alternate activation ensures even wear of motors
Two alarms for ultimate safety – hard-wired alarm plus remote wireless alarm
Working temperature of 35°C. Will handle up to 70°C for short periods
(See Sanicom 1 and 2 for higher temperatures and longer periods)
Can be connected to a Building Management System.
Vertical Pumping Height Up to 11m
Horizontal Pumping Distance Up to 110m or a lesser combination of both.
Inlet Diameter 100/110mm for toilets, 40/50mm for waste waters
Recommended Discharge Pipe Diameter 40mm PVC Pressure Pipe
Electrical Power Supply 220-240V / 50Hz
Motor Power Rating 2 x 1500W
Dimensions 597mm W x 517mm H x 442mm D
Warranty 2 years
Refer DOWNLOAD for Technical information and specifications
High performance macerating lifting station for commercial and intensive residential use
Capable of discharging waste from multiple toilets and other grey waste water appliances
Ideal for busy business environments and larger domestic situations
Tough, reliable macerator pump
New design with easily removable motor for servicing and maintenance
Water level indicator unit can be easily removed for maintenance
Load balanced twin macerator pumps for a fail safe system
Alternate activation ensures even wear of motors
Two alarms for ultimate safety – hard-wired alarm plus remote wireless alarm
Working temperature of 35°C. Will handle up to 70°C for short periods
(See Sanicom 1 and 2 for higher temperatures and longer periods)
Can be connected to a Building Management System.
Vertical Pumping Height Up to 11m
Horizontal Pumping Distance Up to 110m or a lesser combination of both.
Inlet Diameter 100/110mm for toilets, 40/50mm for waste waters
Recommended Discharge Pipe Diameter 40mm PVC Pressure Pipe
Electrical Power Supply 220-240V / 50Hz
Motor Power Rating 2 x 1500W
Dimensions 597mm W x 517mm H x 442mm D
Warranty 2 years
Refer DOWNLOAD for Technical information and specifications
Details
Saniflo Sanicubic 2 Pro WP SA104WP is a high performance macerating lifting station for commercial and intensive residential use. Twin motor load balanced system utilizing high performance stainless steel cutter technology. IP68 submersible rating shredder technology which reduces clogging. In addition, its two motors make it possible to remain in operation in all conditions, its 5 inlets make it possible to connect it to all the sanitary facilities required.
The Sanicubic tank is fitted with 2 dip tubes; one tube controls motor operation and the other controls the alarm system: Long pickup tube (normal operation): as soon as the waste water level in the tank reaches the triggering point in the long tube, the pumping system starts up. Short pickup tube (inflow overload operation): if the waste water level in the tank reaches the upper point, a contact is closed and the auxiliary pumping system is triggered. The contact also sets off an audible and visual alarm.
