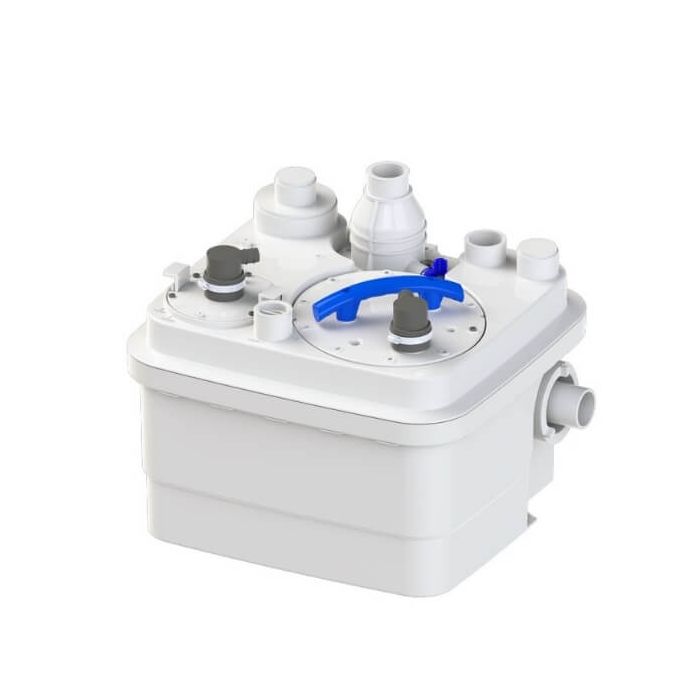

Saniflo Sanicubic 1 WP SA107 macerator is a lifting pump station with one certified IP68 motor and a high performance shredding system which prevents clogging in the pump and the pipes and enabling drainage through low diameters. Specially developed for individual use (private home, small business premises) and removes all wastewater from toilets, bathrooms, kitchens and laundries. Comes with remote control and a sound and sight alarm box, wired for rapid alert in case of malfunction.
The Sanicubic tank is fitted with 2 dip tubes; one tube controls motor operation and the other controls the alarm system: Long pickup tube (normal operation): as soon as the waste water level in the tank reaches the triggering point in the long tube, the pumping system starts up. Short pickup tube (inflow overload operation): if the waste water level in the tank reaches the upper point, a contact is closed and the auxiliary pumping system is triggered. The contact also sets off an audible and visual alarm.
Buy Online Saniflo Sanicubic 1 WP Pumping Lift Station SA107
Saniflo Sanicubic 1 WP Sewer and Grey Water Pumping Station SA107 Residential
FREE SHIPPING
MOST AREAS ORDER OVER $300
$2,899.00
Excl. GST:
$2,635.45
Excl. GST:
Code : 1628154
FREE SHIPPING MOST AREAS ORDER OVER $300
Made in France to the highest standards, must be installed by a licensed plumber. EN 12050-3 and WaterMark approved
Sanicubic 1 WP is designed to accept multiple fixtures from the bathroom, kitchen and laundry
Ideal for additional granny flats, studios and small business premises
Possible Connections black water from several toilets, grey water from bathroom, kitchen, laundry
Several inlets available for greater flexibility.
Tough, reliable high performance shredding system

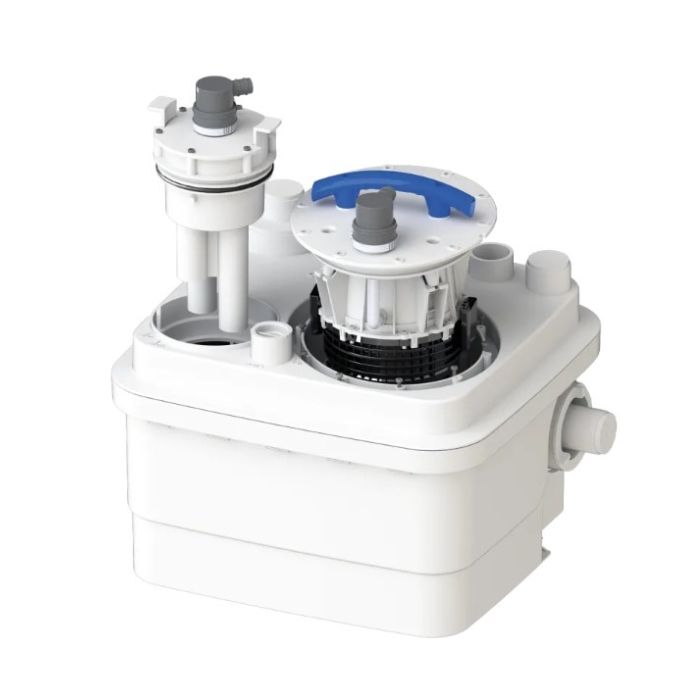

New design with easily removable motor for servicing and maintenance
Water level indicator unit can be easily removed for maintenance
Features integrated non-return valves
Working temperature of 35°C. Will handle up to 70°C for short periods, refer Sanicom 1 & 2 for higher temperatures and longer periods
Vertical Pumping Height Up to 11m
Horizontal Pumping Distance Up to 110m or a lesser combination of both.

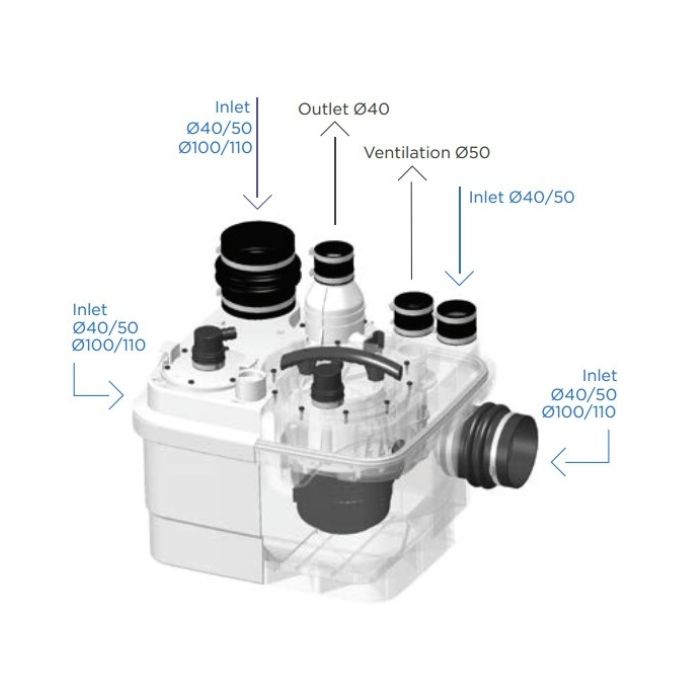

Inlet Diameter 100/110mm for toilets, 40/50mm for waste waters
Recommended Discharge Pipe Diameter 40mm PVC Pressure Pipe
Electrical Power Supply 220-240V / 50Hz
Motor Power Rating 1500W

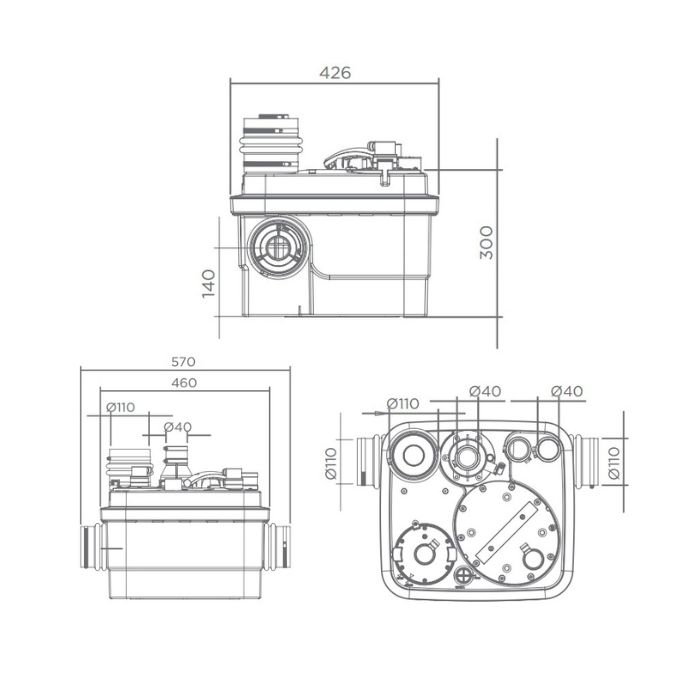

Dimensions 570mm W x 439mm H x 460mm D
Remote hard wired audio visual alarm
Refer DOWNLOAD below for Technical information and specifications
Sanicubic 1 WP is designed to accept multiple fixtures from the bathroom, kitchen and laundry
Ideal for additional granny flats, studios and small business premises
Possible Connections black water from several toilets, grey water from bathroom, kitchen, laundry
Several inlets available for greater flexibility.
Tough, reliable high performance shredding system
New design with easily removable motor for servicing and maintenance
Water level indicator unit can be easily removed for maintenance
Features integrated non-return valves
Working temperature of 35°C. Will handle up to 70°C for short periods, refer Sanicom 1 & 2 for higher temperatures and longer periods
Vertical Pumping Height Up to 11m
Horizontal Pumping Distance Up to 110m or a lesser combination of both.
Inlet Diameter 100/110mm for toilets, 40/50mm for waste waters
Recommended Discharge Pipe Diameter 40mm PVC Pressure Pipe
Electrical Power Supply 220-240V / 50Hz
Motor Power Rating 1500W
Dimensions 570mm W x 439mm H x 460mm D
Remote hard wired audio visual alarm
Refer DOWNLOAD below for Technical information and specifications
Details
Saniflo Sanicubic 1 WP SA107 macerator is a lifting pump station with one certified IP68 motor and a high performance shredding system which prevents clogging in the pump and the pipes and enabling drainage through low diameters. Specially developed for individual use (private home, small business premises) and removes all wastewater from toilets, bathrooms, kitchens and laundries. Comes with remote control and a sound and sight alarm box, wired for rapid alert in case of malfunction.
The Sanicubic tank is fitted with 2 dip tubes; one tube controls motor operation and the other controls the alarm system: Long pickup tube (normal operation): as soon as the waste water level in the tank reaches the triggering point in the long tube, the pumping system starts up. Short pickup tube (inflow overload operation): if the waste water level in the tank reaches the upper point, a contact is closed and the auxiliary pumping system is triggered. The contact also sets off an audible and visual alarm.
