Made in France to the highest standards, must be installed by a licensed plumber. EN 12050-3 and WaterMark approved
Ideal for residential or commercial buildings, restaurants, schools, hotels, shopping centres
Large bore vortex pump which can pump away waste without the need to macerate
Easily removable motors for servicing and maintenance
Large 120 litre tank volume
Two integrated non-return valves and four inlets: 40/50/100/110mm
Easy to install no need to excavate
Externally mounted control box and remote hard wired audio visual alarm
Two alarms for ultimate safety
Working temperature of 35°C. Will handle up to 70°C for short periods.
See Sanicom 1 and 2 for higher temperatures and longer periods
Volt free contact for connection to a Building Management System
Possible Connections black water from several toilets, grey water from bathroom, kitchen, laundry
Vertical Pumping Height Up to 10m
Horizontal Pumping Distance Up to 100m or a lesser combination of both.
Inlet Diameter 100mm for toilets, 40/50 for grey water
Recommended Discharge Pipe Diameter 80/100mm uPVC Pressure Pipe
Electrical Power Supply 220-240V / 50Hz
Motor Power Rating 2 x 2000W
Dimensions 944mm W x 822mm H x 713mm D
Warranty 2 years
Refer DOWNLOAD below for Technical information and specifications

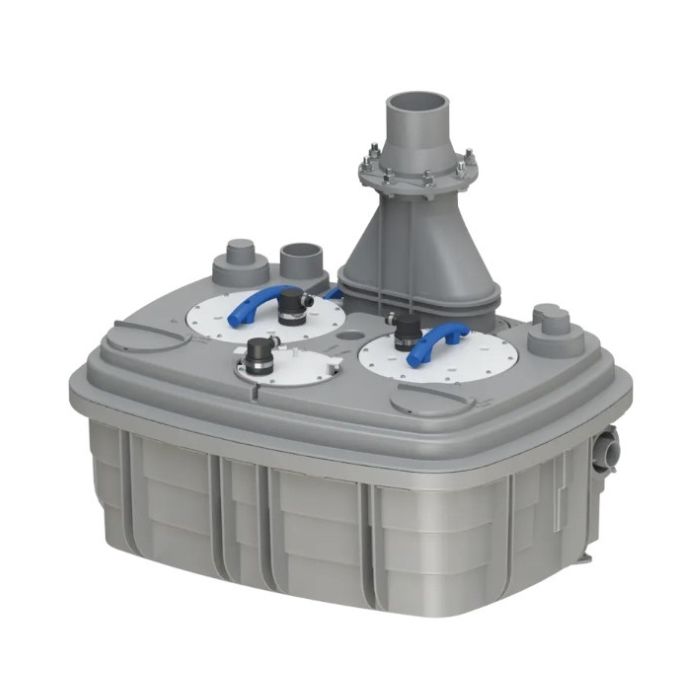

Saniflo Sanicubic 2 VX Sewer and Grey Water Pump Lifting Station SA111 is a large lifting station for commercial or residential building use handling up to 40m 3/hour of black water via two 2kW pumps. It is easy to install as it stands on the floor and does not need to be positioned below ground. IP or "Ingress Protection" ratings specify the environmental protection that the product casing provides and are defined by international standards. They are used to explain levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies e.g. dust, dirt and moisture. Sanicubic 2 VX has rating IP68 which gives protection against continuous submersion in water.
