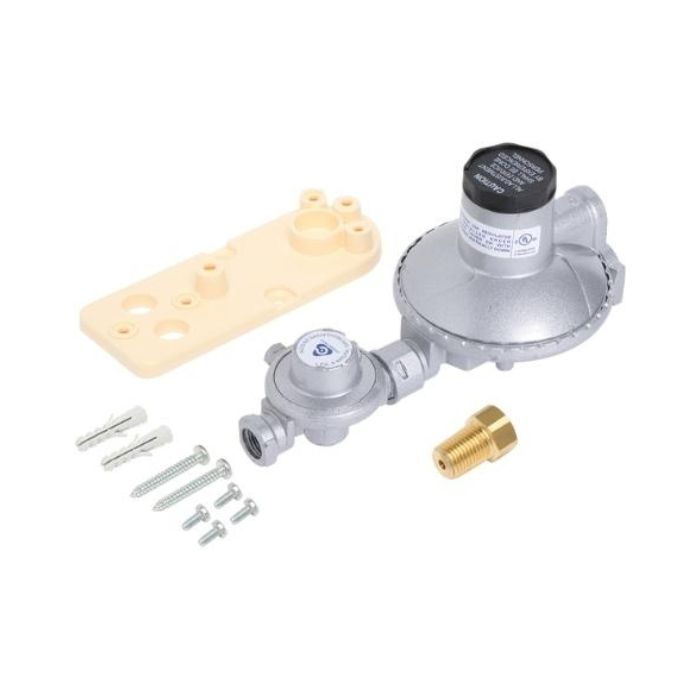

500Mj-Hr LP Gas Regulator Bare Dual Stage Bromic 6060523

LPG gas enters the regulator through a pigtail from a gas cylinder. The gas enters the regulator at a pressure of about 700kPa to 1300kPa from a 45kg cylinder. The actual pressure depends on the ambient temperature, how full the cylinder is and the volume of the gas cylinder. The first stage of the regulator reduces the pressure to about 70kPa (no matter what the entering pressure was) and then the second stage reduces the temperature again to a nominal 2.75kPa.

Gas type: Propane
Model: 6060523 (524B)
Capacity: 500 Mj/hr (11 kg/hr propane)
Outlet pressure: 2.8 kPa (28 mbar)
Inlet Pressure (Max.): 1750 kPa (17.5 bar)
Operating temperature: -20°C to +50°C
Body: Die cast Zinc alloy/ painted
Diaphragm: Approved NBR (fabric reinforced)
Inlet connection: ¼” NPT F
Outlet connection: 1/2” NPT F
Adaptor connection: ¼” NPT M x 7/16” Inv flare
Warranty: 1 year replacement warranty
