400Mj-Hr Dual Cylinder LP Gas Regulator Kit Auto Change Over Bromic 6060545

LPG gas enters the regulator through a pigtail from a gas cylinder. The gas enters the regulator at a pressure of about 700kPa to 1300kPa from a 45kg cylinder. The actual pressure depends on the ambient temperature, how full the cylinder is and the volume of the gas cylinder. The first stage of the regulator reduces the pressure to about 70kPa (no matter what the entering pressure was) and then the second stage reduces the temperature again to a nominal 2.75kPa.

2 cylinders and 2 pigtails must always be connected. Both cylinders should be turned on. The cylinder that the white dial is pointing to is the cylinder in use – it will be green when on and in use. When this indicator turns red, it means the cylinder is empty and should be replaced. When this happens, there is no pause in gas usage as the internal valve has automatically switched over and is pulling gas from the other cylinder. The dial can now be manually turned to point to the cylinder that is in use and the indicator will turn green again.

The regulator should be checked regularly (monthly – depending on usage) so that when the red indicator is observed, the gas bottle can be replaced quickly to ensure both bottles are not run empty.

For use with LP Gas (Propane)
Inlet Connection: 7/16" NPT
Outlet Connection: 1/2" NPT
Capacity (LPG at 2.8kPa) (MJ/hr / kg/hr) 400/8

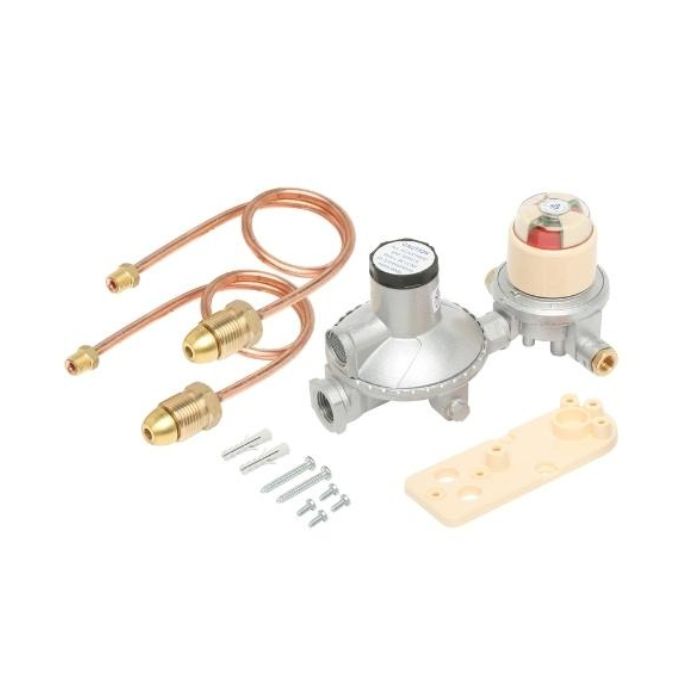

Includes Adaptor + Bracket + Screws
Changeover: Automatic
Pigtail Copper: 2 x 450mm
Used for domestic, light commercial and transport applications
