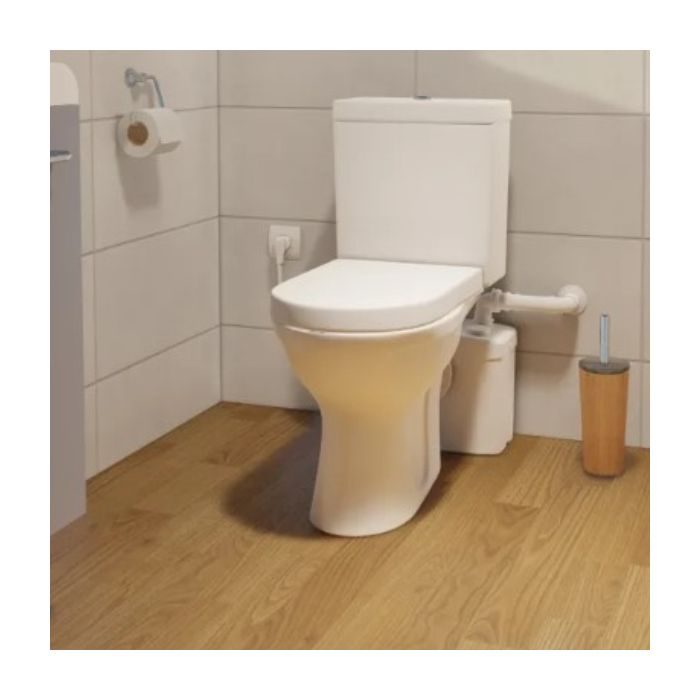

Saniflo Sanitop Toilet Macerator Pump SA97 - 2 Available Inlets

The Sanitop is a compact and reliable macerator which facilitates the installation of an additional toilet and hand basin in domestic situations where gravity drainage is not an option. The Sanitop has an integrated carbon filter, non-return valve and can be fitted with a Sanialarm for additional peace of mind. The Lid of the tank is easily removable for simple servicing. Features two inlets, one for toilet waste and an additional to facilitate an adjacent hand basin or sink.

Domestic applications
Possible Connections Toilet and vanity basin/sink
Vertical Pump Height Up to 5m, Horizontal Pump Distance up to 100m or a lesser combination of both.
Recommended Discharge Pipe 20/25mm PVC Pressure Pipe
Inlet Pipework 100mm/40 mm
Normal Operating Temperature 35˚C
Electrical Power Supply 220-240V / 50Hz
Motor Power Rating 400W

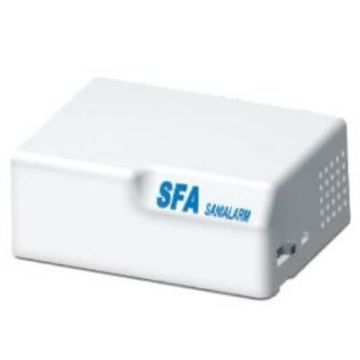

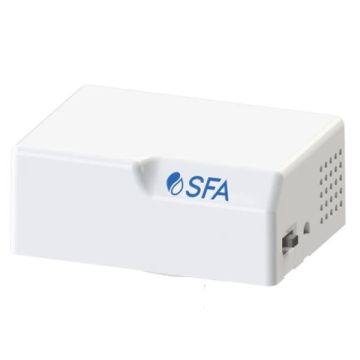

Can be equipped with Sanialarm (sold separately)
Overall Measurements 330mm W x 280mm H x 161mm D

Tips: Foreign objects such as pieces of cloth, dental floss, hygiene products, flushable wet wipes etc. should not be flushed into the macerator. Macerator needs minimum 4.5 Litre of unrestricted flush for optimal function.

Refer Download for Further Technical Information
Made in France to the highest standards.
MUST BE INSTALLED BY A LICENSED PLUMBER.
WaterMark approved.
Warranty 2 years
