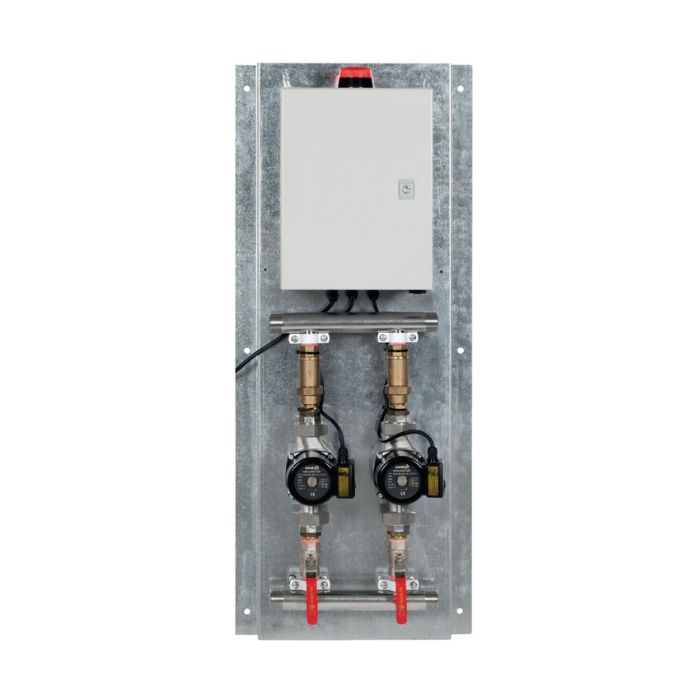

Maxijet DHWC3280-D Deluxe Dual Hot Water Pre Plumbed Circulator Pump Set 32mm 166LPM

Hyjet Dual Hot Water Circulator Pump sets give assurance when needing a reliable hot water supply and is efficient in energy consumption by timing the operation of the pumps when required. The DHWC Series systems incorporate Hyjet HPD stainless steel circulator pumps and stainless steel manifolds. The complete system is mounted on a Galvanised base plate and is pre-plumbed with all associated valves and fittings including dual check valves and ball valves for easy maintenance.

Deluxe model includes a metal powder-coated weatherproof controller with lockable main isolator switch with Auto / Off / PUMP 1 and PUMP 2. The keypad has LED indicator lights for system status including pump run, pump failure and alarm. The deluxe controller will automatically alternate duty of pumps every six hours and has a time clock for run settings and BMS output connection.

Operating Limits
Clean water without abrasives or suspended solids
Max. Liquid Temperature 110°C
Max. Ambient Temperature 40°C
Max. Operating Pressure 10 Bar (1000kPA)
Flow. 166 L/min
Dimensions: 1000mm H x 500mm W x 215mm D
Pipe Connection: 32mm 1-1/4" BSP

In–line pump casing for easy installation
Barrel unions on suction and delivery for easy install and maintenance
3-speed manual adjustment to suit various applications
Manual bleed on start-up
Low power consumption
Quiet operation
Pump Casing Stainless Steel
Motor IP44
In-built capacitor and thermal protection
