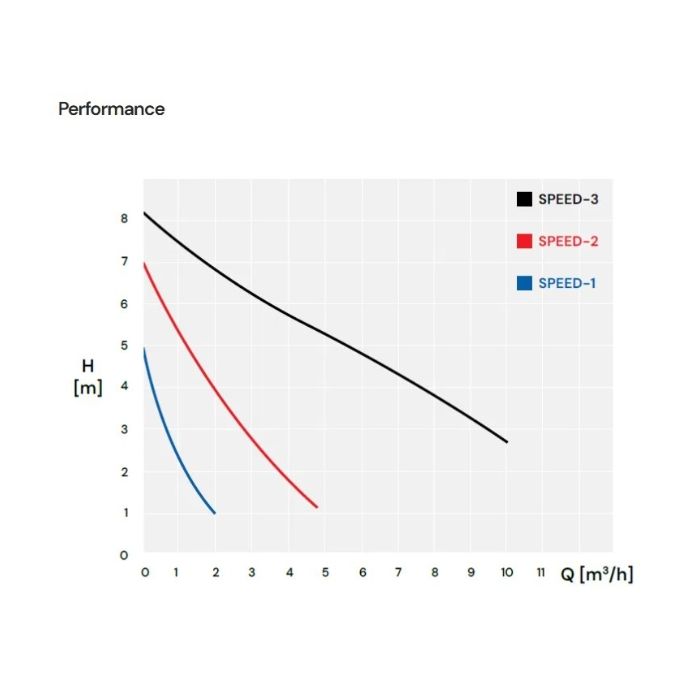

3-speed manual adjustment to suit various applications.

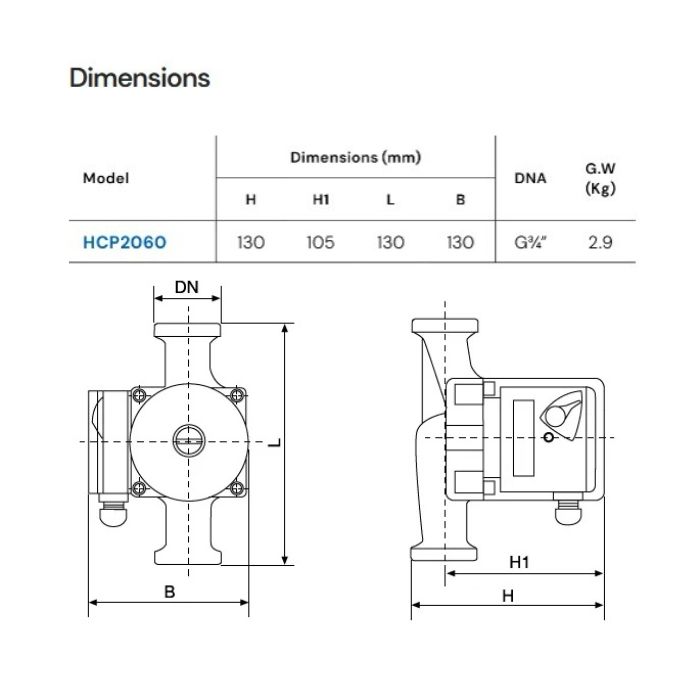

25mm 1" Female x 20mm 3/4" BSP Male Union Connections
APPLICATION
Hot water circulating for domestic and commercial hot water systems, Cold water circulating for air-conditioning and cooling systems.
FEATURES
Inline pump casing for easy installation, Barrel unions on suction and delivery for easy install and maintenance , Pump can be set to MANUAL, AUTO or OFF, Manual bleed on start up, Low power consumption, Reliable and maintenance free, Quiet operation.
OPERATING LIMITS
Clean water without abrasives or suspended solids, Max. Liquid temperature 110°c, Max. Ambient Temperature 40°c, Max. Flow 60 L/min, Max. Operating pressure 10 bar.
CONSTRUCTION
Pump Casing: Bronze DR, Motor Shaft: Ceramic, Impellers: PES Composite, Bearings: Ceramic, Seals: EPDM, Motor IP44, Insulation class H, Inbuilt capacitor and thermal protection.
Maxijet Hyjet HCP2060 20mm Hot or Cold Water Circulating Pump Bronze domestic and commercial hot water circulating for air–conditioning and cooling systems. HYJET circulating range of pumps is exceptional quality and reliable for domestic and commercial installations.
