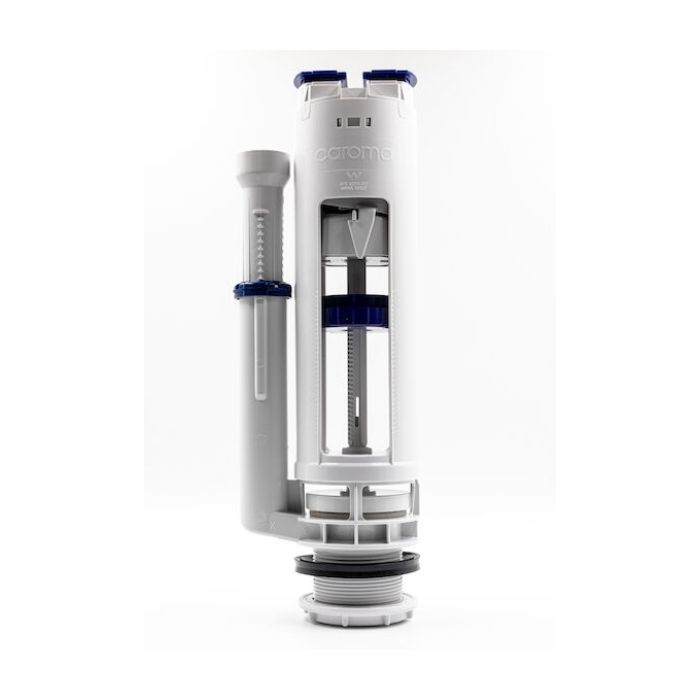

Caroma Toilet Cistern Quietflow M5 V2 Outlet Valve Dual Flush 750085

Caroma Quietflow M5 V2 Outlet Valve is a universal dual flush flush valve that suits most Caroma, Fowler, Clark and Stylus ceramic cisterns manufactured from 1990's to present. Quietflow M5 valve can be installed in conjunction with standard bottom entry inlet valves and or back/rear entry inlet valve kit model 687257. Ideal for replacing early Caroma models 750080 M5, 413295 Duoflo Type 2, 413296 Duoflo Type 3 outlet valves.

Dual Flush with Simple Button Height Adjustment.
Refer to Quick Reference Chart & Installation Instructions Download below.
Button Platform Extensions & Forward/Rear of Center Button Caps provided for dual flush button compatibility.

There are 3 ways to configure your Quietflow outlet valve to set the right flush volumes. Match the Settings If you’re replacing an existing Quietflow valve then all you have to do is match the setting of your new valve to the old one. Refer Quick Reference Chart If you know the name of the existing toilet suite, then check the reference chart. If your suite is listed then configure the valve as per settings in the table Measure Flush Volume

If you are replacing a Caroma, Fowler or Stylus dual flush outlet valve and the model is not listed on chart, then you will have to configure the valve by measuring the flush volumes. This method can also be used for other brand toilet suites where the valve is suitable for installation.
