Suitable for Hot & Cold
Spindle Stem: Chrome Flat Sided Threaded Top
Length: 99mm
Locking Nut Length: 30mm
Suit Standard Seat Basin Set Body or Bath/Shower Recessed Wall Breech
Operation: 1/4 Turn Ceramic Disc Contra Rotate Hot Clockwise & Cold Anti Clockwise Close
Suit Handle Type: Lever or Pin
Suit Flange Thread: ½” BSP - (20mm OD)

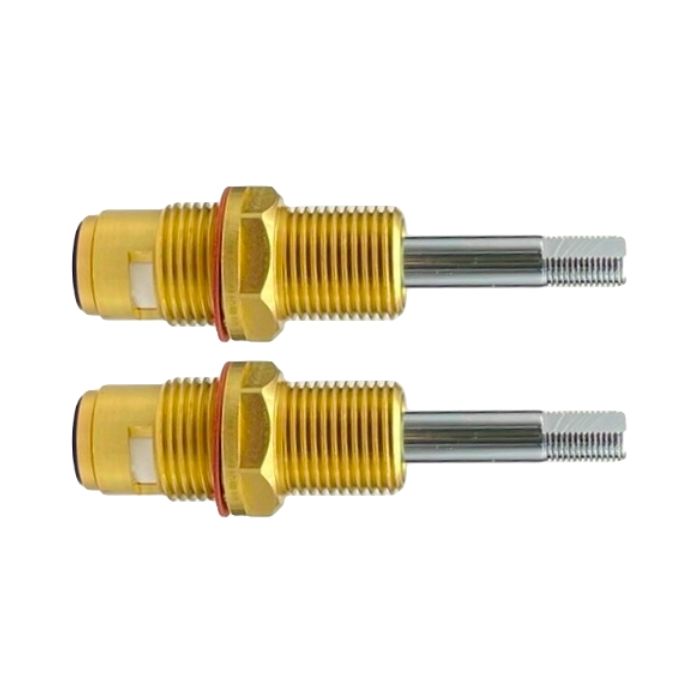

Easytap TZ110CON 1/4 Turn Wall Spindles Ceramic Disc Contra Turn Flat Side Chrome. Suit Standard Seat Basin Set Body or Bath/Shower Recessed Wall Breech
Correctly identifying the brand of taps will ensure the Easytap replacement spindle fits properly with original tap body, handles and flanges.
A: If you know the tap brand (such as Dorf, Irwell, Donson etc) then simply match the same model from the Easytap range.
B: If unsure as to the brand of the original tap, remove existing spindle, measure dimensions and match spindle from the range.
2 year manufacture warranty applies to Easytap ceramic disc cartridges (excludes labour). Warranty void if mechanical damage, such as over forced turning, incorrect or unlicensed installation
