Suitable for Hot & Cold Supplied in Pairs
Spindle Stem: Gold Flat Sided Threaded Top

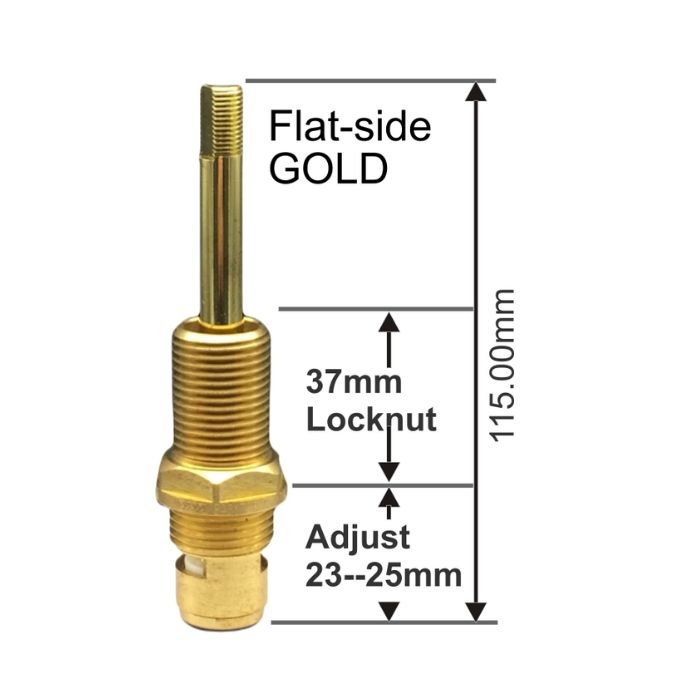

Length: 115mm
Locking Nut Length: 35mm
Suit Standard Seat In Wall Recess Breech
Operation: 1/4 Turn Ceramic Disc Contra Rotate HOT Clockwise Close & COLD Anti Clockwise Close
Suit Flange Thread: ½” BSP - (20mm OD)
Suit Handle Type: Lever or Pin Style

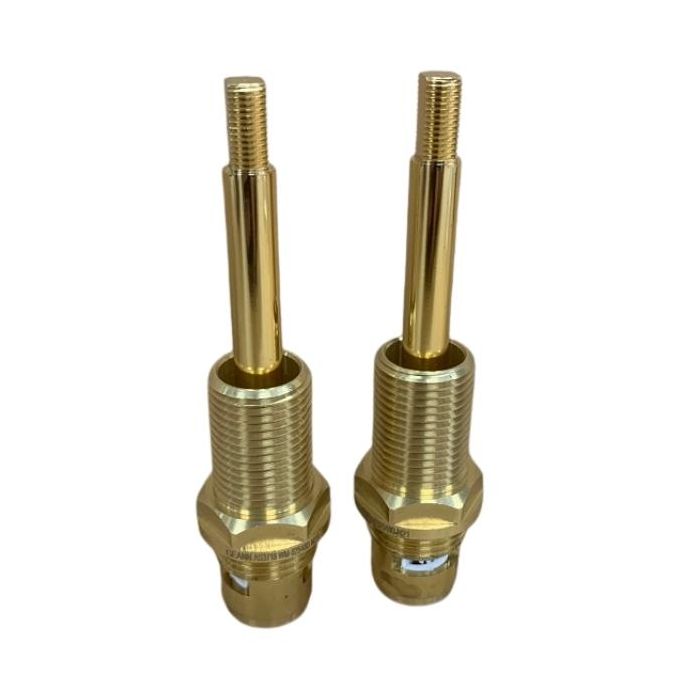

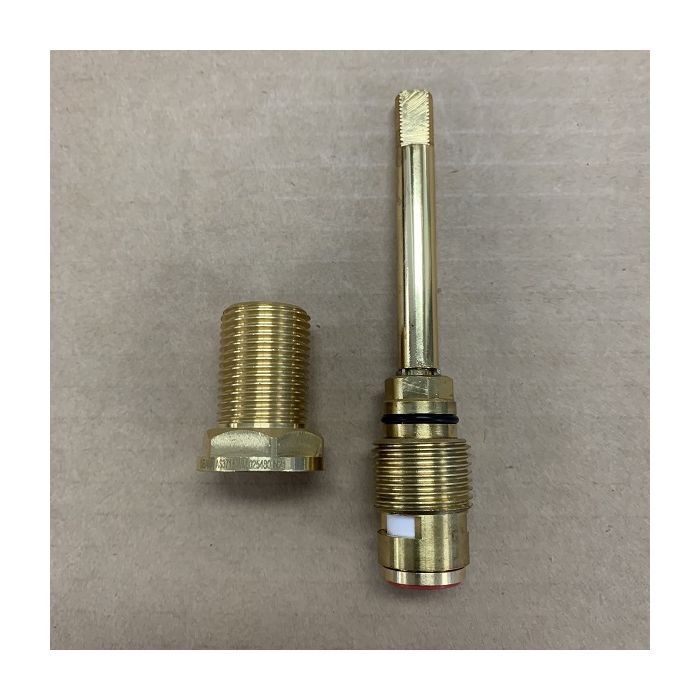

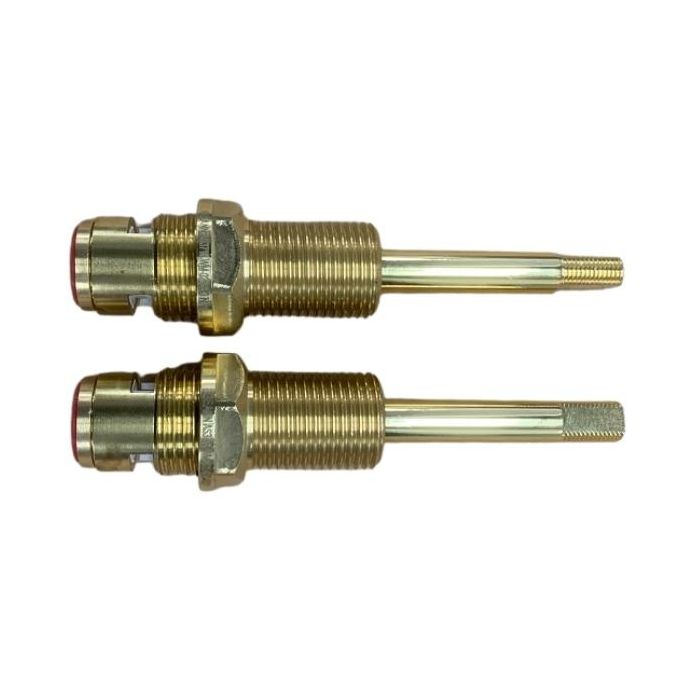

Easytap TZ3020CON 1/4 Turn Gold Dorf Wall Shower or Bath Tap Spindles Ceramic Disc Lever Contra Flat Side. Suit Dorf Majestic and Manor House colonial federation style taps with lever handles and other lever tapware with flat sided top spindle.
Correctly identifying the brand of taps will ensure the Easytap replacement spindle fits properly with original tap body, handles and flanges.
A: If you know the tap brand (such as Dorf, Irwell, Donson etc) then simply match the same model from the Easytap range.
B: If unsure as to the brand of the original tap, remove existing spindle, measure dimensions and match spindle from the range.
2 year manufacture warranty applies to Easytap ceramic disc cartridges (excludes labour). Warranty void if mechanical damage, such as over forced turning or installed by unlicensed person
