Suit Dorf Kytin twin lever basin and kitchen mixer style taps
Suitable for Hot & Cold

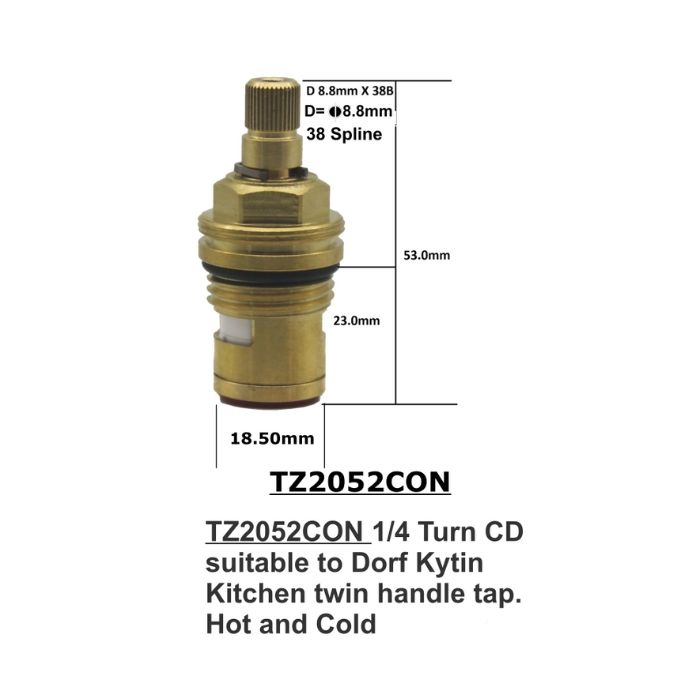

Spindle Stem: Brass 38 Teeth Splined Top. Diameter 8.8mm
Length: 53mm
Operation: 1/4 Turn Ceramic Disc
NOTE: Original Dork Kytin spindles are a two piece locking bush and spindle. Remove outer bush from spindle and re use bush with model TZ2052CON. Refer to video for tips.

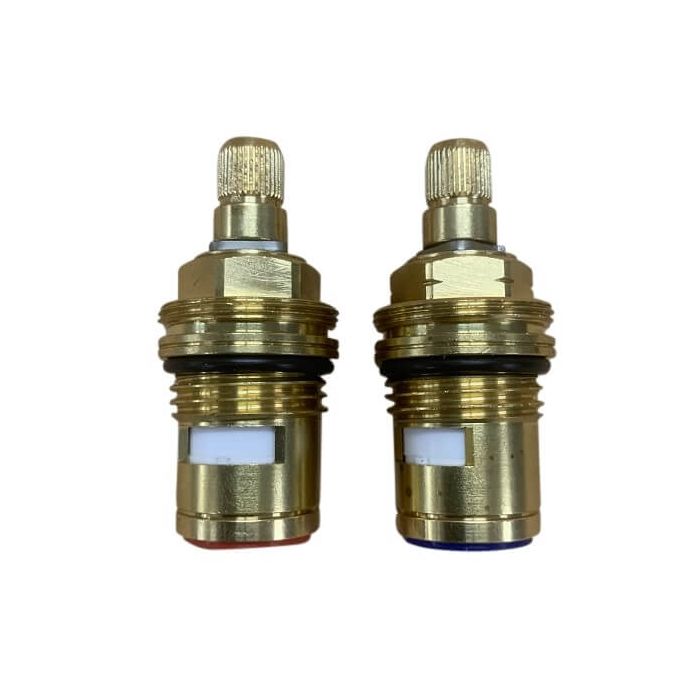

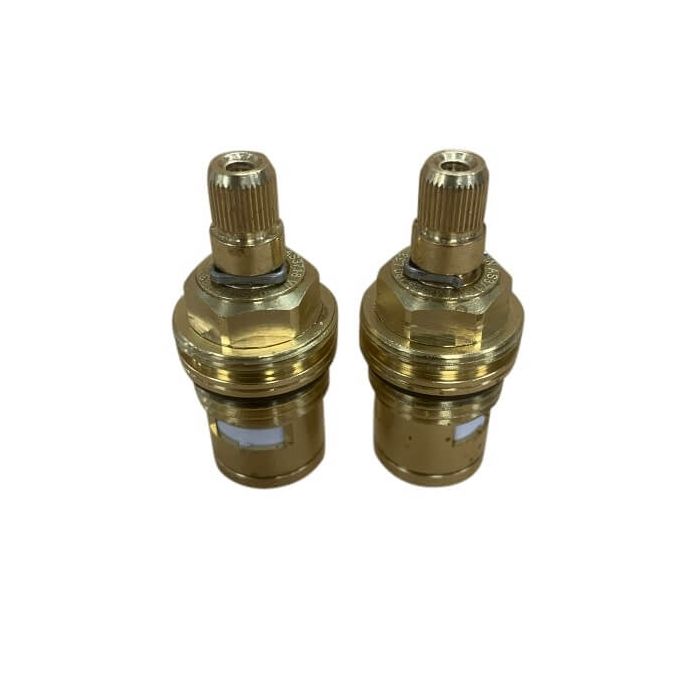

Easytap TZ2052CON quarter turn Dorf Kytin twin lever basin & kitchen mixer tap spindles contra rotating ceramic disc cartridge splined top. Contra rotating ceramic disc spindles are most commonly used with lever style taps with hot & cold water turning on or off in opposite directions.
Correctly identifying the brand of taps will ensure the Easytap replacement spindle fits properly with original tap body, handles and flanges.
A: If you know the tap brand (such as Dorf, Irwell, Donson etc) then simply match the same model from the Easytap range.
B: If unsure as to the brand of the original tap, remove existing spindle, measure dimensions and match spindle from the range.
2 year manufacture warranty applies to Easytap ceramic disc cartridges (excludes labour). Warranty void if mechanical damage, such as over forced turning, incorrect or unlicensed installation
