SharkBite Crosslinked Polyethylene is extruded as a PEXb pipe and manufactured using the silane or ‘moisture cure’ method and is made in a two stage simple process.
1. Silane grafted polyethylene is combined with a catalyst and extruded into PEXb pipe.
2. The cross linking process is then performed by exposing the pipe to steam.
The moisture cure process of cross linking PEXb pipe enhances pipe performance properties including strength, temperature,
chemical resistance, crack, creep and abrasion resistance, pipe flexibility, pressure rating, expansion and contraction.
Additionally SharkBite Crosslinked Polyethylene is made using a PEX100 raw material which provides the benefits of an SDR9 pipe
wall, improved flow rates, and a pressure rating equivalent to a SDR7.4 pipe.
Simply CUT - PUSH - DONE.
For use on hot and cold potable water.
Australian made and owned.
25-year warranty.
Used to connect SharkBite PEX Pipe
Outside Diameter 20mm
Inside Diameter 15.2mm
SharkBite® fittings and PEX pipe comply with and are approved to Australian Standards AS/NZS 2537 and AS 2492 – 1994 respectively.

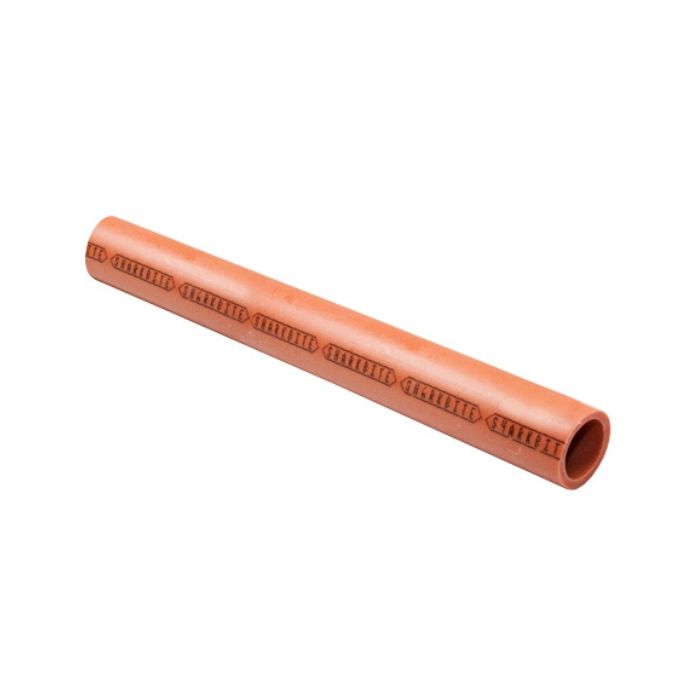

20mm X 5m SharkBite Hot Water Red PEX Tube XF870R Crosslinked Polyethylene is extruded as a PEXb pipe and manufactured using the silane or moisture cure method and is made in a two stage simple process.
