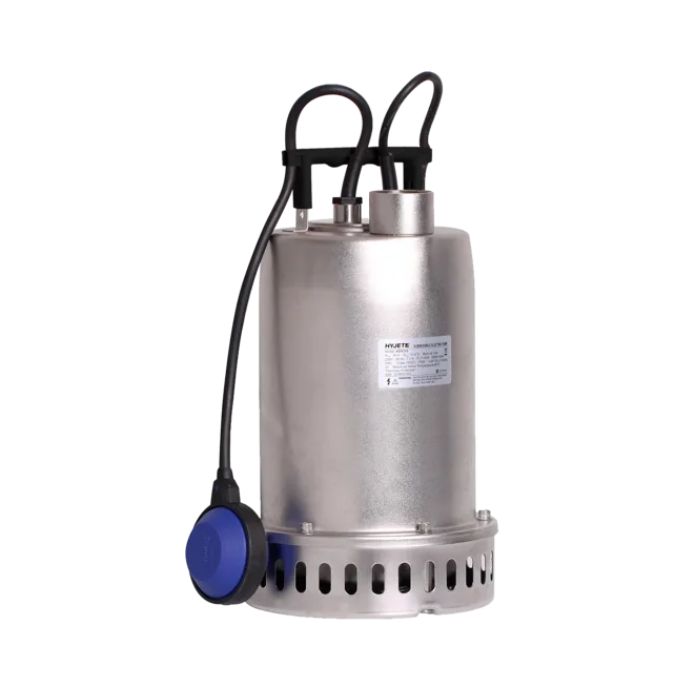

HDS Series Stainless Steel Submersible pumps for stormwater pits, lift wells, plant room sumps and general water transfer for water tanks and swimming pools. The HDS Series sump pumps have a double mechanical seal to ensure long life and durability. These pumps are capable of pumping water with 10mm suspended solids.

Application: Commercial / Residential

Features
Pump Body / Motor Casing: AISI 304 Stainless steel
Impeller: AISI 304 Stainless Steel
Motor Shaft: AISI 304 Stainless Steel 8
Double Mechanical Seal: Upper – Carbon Ceramic/NBR, Lower – SiC/SiC/NBR closed in oil chamber
Max. Operating Depth: 10m
Max. Fluid Temp: 40°C
Max. Suspended Solids: 10mm
Two pole induction motor
50 Hz 1Ph 240 Volt
Protection IPX8
Insulation Class F
Thermal Overload protection
10m Power cable

Max. FLOW (L/min) 275
Max. HEAD (m) 15
Outlet 1-1/2" 40mm Female Top Discharge
Warranty 2 Year
