These single phase instant hot water systems are ideal for low flow installations as the water heater has a switch on flow rate at only 1.5 litres per minute. With installation flexibility in mind, the DHCE hot water system is compact in design and ideal for those applications where space is tight. DHCE has a switch on flow rate of only 1.5L/min making them ideal water heaters to use with low flow tapware.

Modern carbon look design, Electronically controlled
Three selectable temperature outputs for greater convenience: 40°C 45°C 50°C
Delivers a maximum of 50 degree Celsius hot water in accordance with AS3498
No safe tray or drainage required (check local regulations)

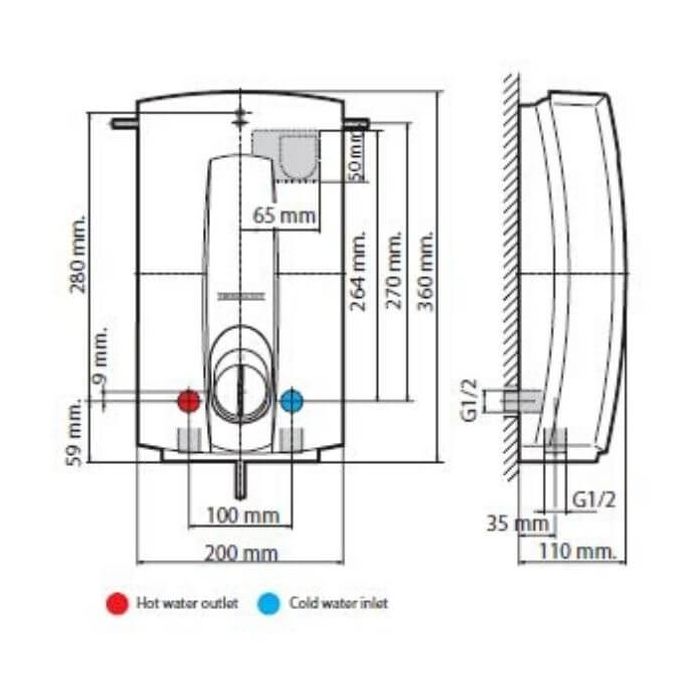

Dimensions H 360mm x W 200mm x D 110mm
Direct Wired, Made In Germany
WaterMark approved, Lic. No. WMKA21273, AS3498

CALCULATING OUTPUT WATER TEMPERATURE:
Add below temperature rise value to Seasonal Average incoming cold-water temperature to calculate output at a desired flow rate. Typical Basin or Sink Tap Flow Rate is 6 Lpm and a Shower 9 Lpm

DHCE 8/50 Temperature Rise (240 V) Litres Per Minute
4 Lpm +33°C. 5 Lpm +27°C . 6 Lpm +22°C . 7 Lpm +19°C. 9 Lpm +15°C

SEASONAL AVERAGE INCOMING COLD-WATER TEMPERATURES:
Melbourne: 15°C. Sydney/Brisbane/Perth/Adelaide: 18°C. Canberra/Hobart: 14°C. Townsville/Darwin: 25°C

Refer Download for Further Information & Water Temperature Output Calculations and Flow rates
5 Year full parts and labour domestic warranty*
*Conditions apply - refer Stiebel Eltron warranty policy for full details.
Must be installed by a qualified licensed person in accordance with manufacturer’s instructions and all relevant plumbing and electrical regulations.
