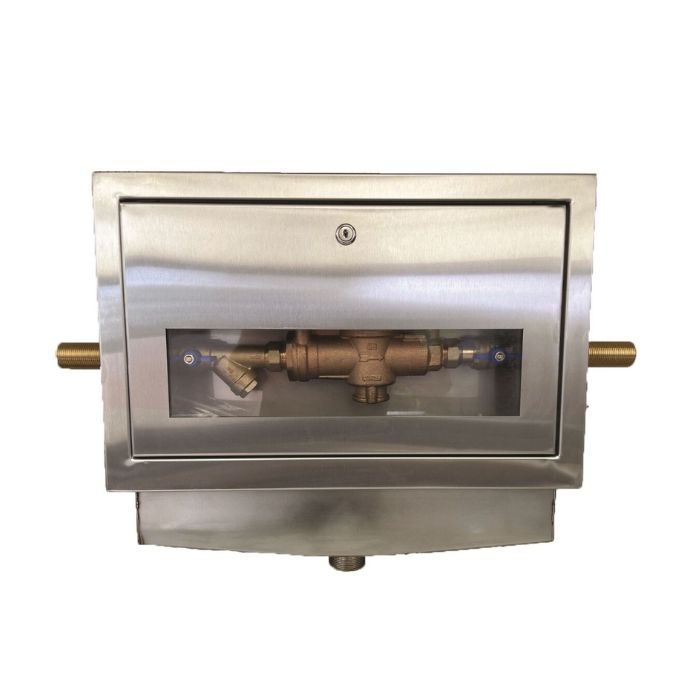

Watts 25mm RPZD Single Reduced Pressure Zone Device Recessed Lockable Cabinet 009-025-SCABR-LF

Series 009 Reduced Pressure Zone Devices are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross-connections in piping systems or for containment at the service line entrance. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.

Pre Plumbed with 25mm 1" Watts 009-025-ULBS Reduced Pressure Zone Device.
Lead Free
Recess box manufactured from #304 grade stainless steel
Dimensions 552mm W x 356mm H x 90mm D
40mm waste connection
Lockable front access panel
Vent slots at top of cabinet to avoid condensation
4 x Adjustable brackets supplied
See download for technical information.
Special Order: Non Returnable Item
