Logi HWKIT-01-HP FitQuik Storage Hot Water Installation Kit With High Performance Temp Valve
Logi HWKIT-01-HP FitQuik Storage Hot Water Installation Kit With High Performance Temp Valve LF
$120.00
Excl. GST:
$109.09
Excl. GST:
Code : 1661567
-
Buy 5 for $110.00 $100.00 each and save $10.00 (Per Unit)5 for $110.00 $100.00 each
-
Buy 10 for $104.00 $94.55 each and save $16.00 (Per Unit)10 for $104.00 $94.55 each
Lead Free Watermark approved
Integral Non Return and Isolation function
Suitable for horizontal and vertical installation
Insulation jacket provided as per AS3500.4
Working Temperature: 1°C to 90°C
Maximum Pressure Rating: 1400kPa

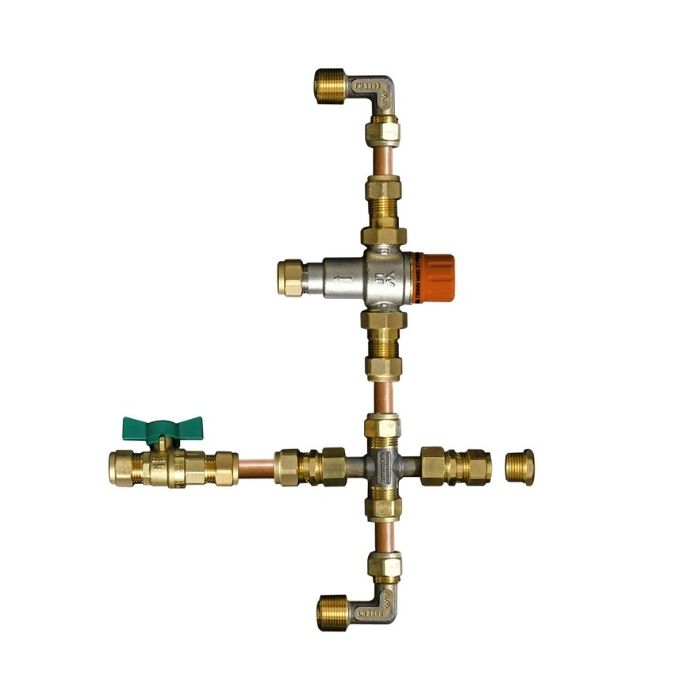

Component Chart
1x Tee Swivel Nut 15FI x 15FI x 15C x 15C
2 x Copper Compression Union Brass 15MI x 15C
2 x Copper Compression Elbow Reducing Extended 20MI x 15C
1 x PU Cover to Suit DFC
1 x Hexagonal Plug Brass 15mm BSP
1 x High Performance Solar Tempering Valve 15MM
1 x Dual Isolation Non Return Ball Valve with Check Valve Copper Compression
Integral Non Return and Isolation function
Suitable for horizontal and vertical installation
Insulation jacket provided as per AS3500.4
Working Temperature: 1°C to 90°C
Maximum Pressure Rating: 1400kPa
Component Chart
1x Tee Swivel Nut 15FI x 15FI x 15C x 15C
2 x Copper Compression Union Brass 15MI x 15C
2 x Copper Compression Elbow Reducing Extended 20MI x 15C
1 x PU Cover to Suit DFC
1 x Hexagonal Plug Brass 15mm BSP
1 x High Performance Solar Tempering Valve 15MM
1 x Dual Isolation Non Return Ball Valve with Check Valve Copper Compression
Details
Logi HWKIT-01-HP FitQuik Storage Hot Water Installation Kit With High Performance Temp Valve
