Designed to reduce the extent of flooding and water damage caused from a burst flexible hose. FloodGuard™ is intended to be fitted inline between the isolating tap and the hose connection to the fixture. If the valve closes and does not reset, close the tap, slowly unscrew the valve until water pressure is relieved then reinstall the valve.
Designed and manufactured in Australia
Reliable design with over 10 years proven track record
Suitable for horizontal and vertical installation
Quick and easy installation
Ideal for retrofit installations
Minimum Water Supply Pressure 200kPa
Maximum Water Supply Pressure 1000kPa
Maximum Water Temperature 85°C
Shut Off Flow Rate Exceed 19-20 L/min
Inlet and Outlet Connection 20mm 3/4" BSP Male x Female
Body DZR Brass
Spring Stainless Steel
O-Ring Nitrile
WaterMark WMKA26329

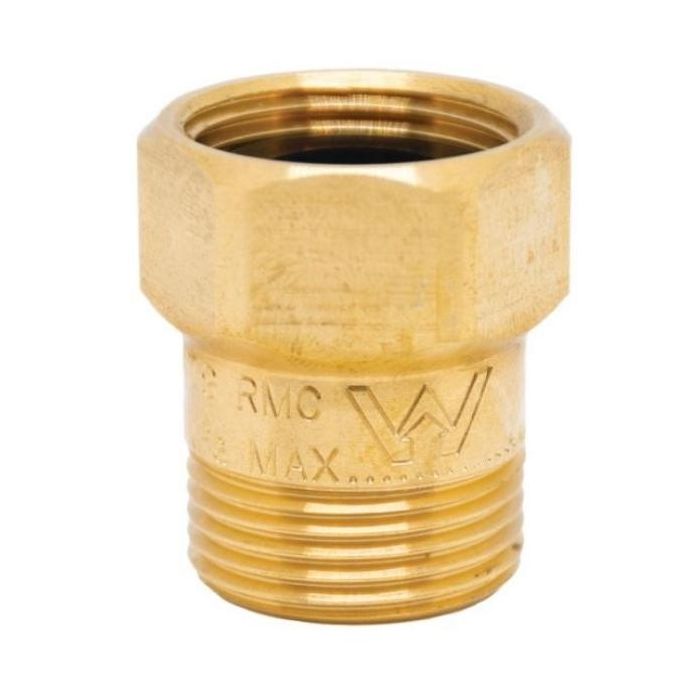

20mm BSP Floodguard Valve RMC FG501 are designed to allow water to flow normally until an excessive flow rate is detected. FloodGuard™ is intended to be fitted inline between the isolating tap and the hose connection to the fixture
