Pressure Reduction Valves are fitted in water systems to moderate and stabilize mains water pressure, which is at times too high for domestic appliances. The valves are pre-set at 500kPa which is the most widely used setting for domestic appliances. However the pressure reduction valves can be easily adjusted to suit your needs from a range of 150kPa to 600kPa.
20mm 3/4" BSP Female
Maximum temperature 60°C
Outlet pressure range 150 to 600kPa
Factory set at 500kPa
Maximum inlet pressure 1600kPa
Flow rate 100L/min at 700kPa
Watermark approved
DR Brass
Internal strainer
Outlet for pressure gauge 6mm 1/4" BSP

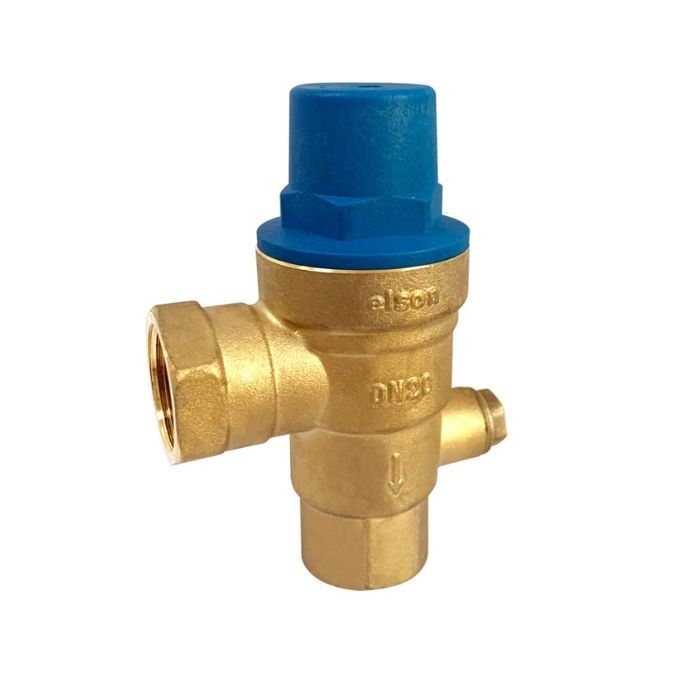

20mm Right Angle Pressure Reduction Meter Valve 500kPA Adjustable 3/4" BSP Female RAPR20 are fitted in water systems to moderate and stabilize mains water pressure, which is at times too high for domestic appliances. The valves are pre-set at 500 Kpa which is the most widely used setting for domestic appliances. However the pressure reduction values can be easily adjusted to suit your needs from a range of 150 Kpa to 600 Kpa.
