Suitable for Hot & Cold

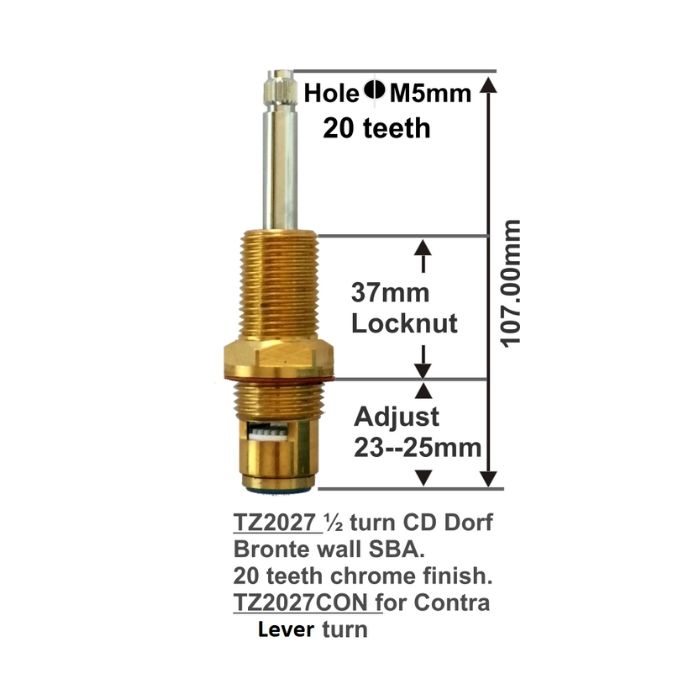

Spindle Stem: Chrome 20 Teeth Splined Top
Length: 107mm
Locking Nut Length: 37mm
Suit Standard Seat Recess Wall Breach
Operation: ½ Turn Ceramic Disc Contra Rotate Hot Clockwise & Cold Anti Clockwise Close
Suit Flange Thread: ½” BSP - (20mm OD)
Suit Handle Type: Lever or Pin Style

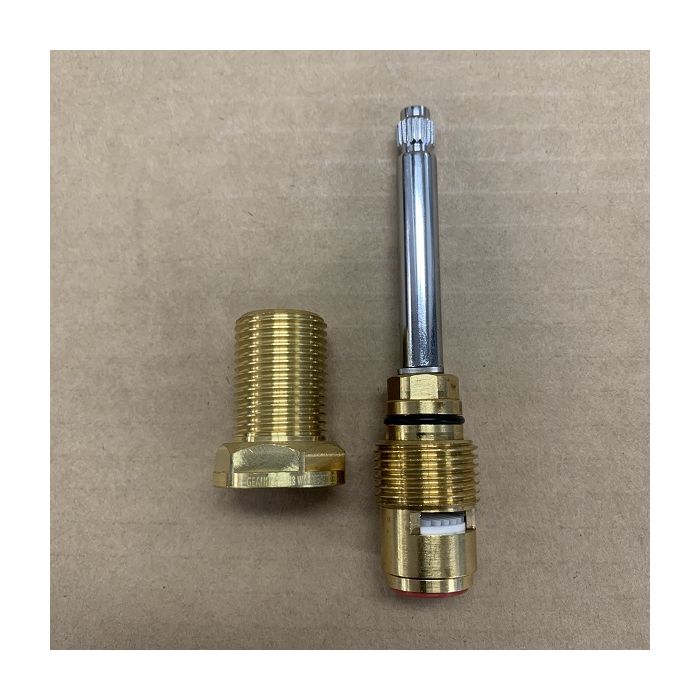

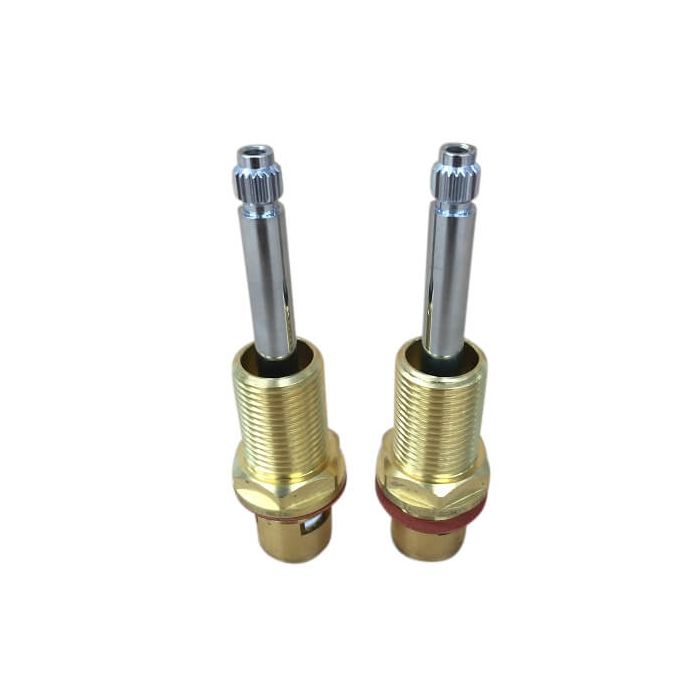

Easytap TZ2027CON Dorf Bronte & Manor House lever half turn contra rotate chrome wall spindles ceramic disc for shower or bath tap sets with 20 teeth splined top. Contra rotating ceramic disc spindles are most commonly used with lever style taps with hot & cold water turning on or off in opposite directions. HOT clockwise close and COLD anti clockwise close.
Correctly identifying the brand of taps will ensure the Easytap replacement spindle fits properly with original tap body, handles and flanges.
A: If you know the tap brand (such as Dorf, Irwell, Donson etc) then simply match the same model from the Easytap range.
B: If unsure as to the brand of the original tap, remove existing spindle, measure dimensions and match spindle from the range.
2 year manufacture warranty applies to Easytap ceramic disc cartridges (excludes labour). Warranty void if mechanical damage, such as over forced turning, incorrect or unlicensed installation
