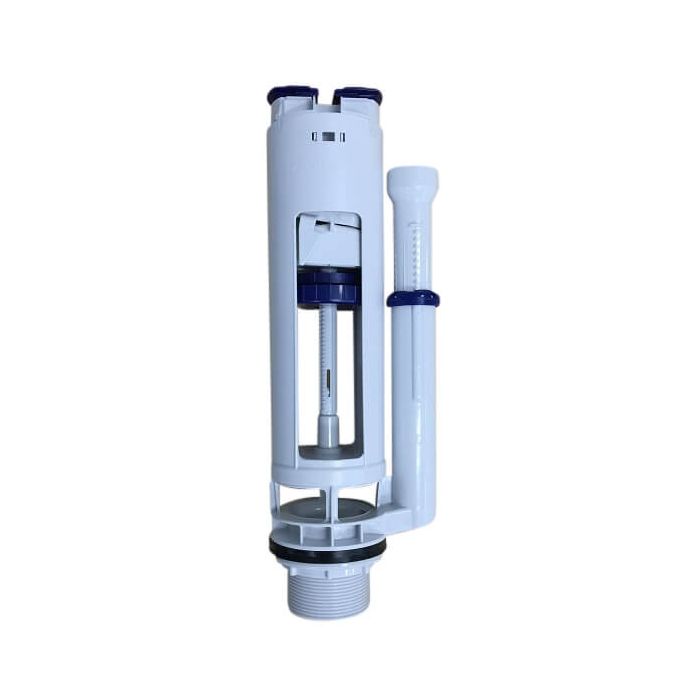

Caroma Toilet Cistern Quietflow M5 V2 Outlet Valve Dual Flush 750085

$77.18

Availability: In stock

CODE:

1628292

Show prices

INCL

EXCL

GST

Suits selected Caroma, Fowler and Stylus vitreous china cisterns.
Adjustable flush volumes 4.5/3Litre, 6/3Litre, 9/4.5Litre,
Button adjusters included to suit cisterns listed on reference chart
Suits Caravelle 2000, Cube, Geo, Leda, Milan, Monarch, Opal, Opal 2, Profile, Regal, Sovereign 2000, Sovereign, Retro, Vand, Viceroy, Vintage.
Fowler Consort, Newport, Newport Cube, Regent, Florida MK11 Seido and Stylus Venecia cisterns.
Genuine Caroma Quality Parts
Refer DOWNLOAD for Technical information and specifications

Note.
Replacement of rear entry inlet valve may also be required for earlier model Ceramic cisterns with old style square outlet valves.
Refer code 1624732.

Details

Caroma Toilet Cistern Quietflow M5 V2 Outlet Valve Dual Flush 750085. Replacement for Models 750080 M5, 413295 Duoflo Type 2, 413296 Duoflo Type 3 outlet valves

There are 3 ways to configure your Quietflow outlet valve to set the right flush volumes.
Match the Settings
If you’re replacing an existing Quietflow valve then all you have to do is match the setting of your new valve to the old one.

Quick Reference Chart
If you know the name of the existing toilet suite, then check the reference chart (see download on this page) If your suite is listed then configure the valve as per settings in the table

Measure Flush Volume
If you are replacing a Caroma, Fowler or Stylus dual flush outlet valve and the model is not listed on chart, then you will have to configure the valve by measuring the flush volumes. This method can also be used for other brand toilet suites where the valve is suitable for installation.
