250mm 10" Galvanised Steel Flange Backing Ring Table E BWBRE250 PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.

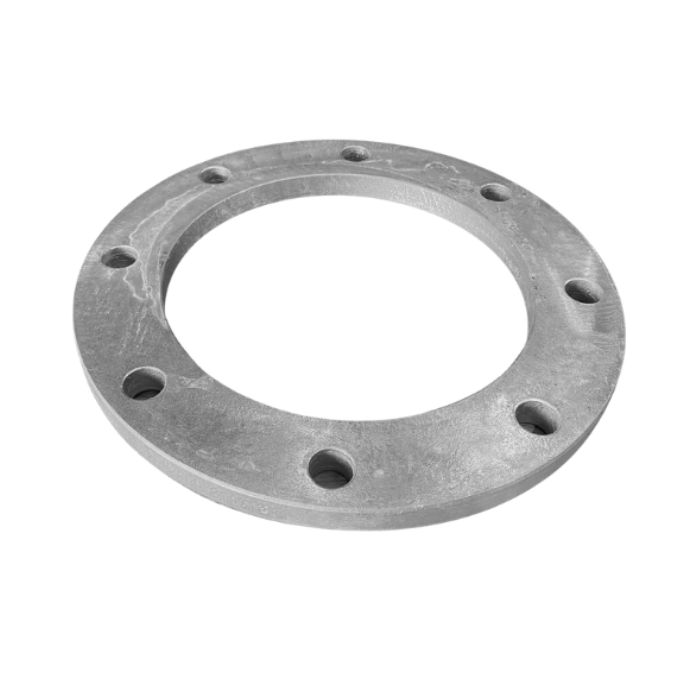

250mm 10" Galvanised Steel Flange Backing Ring Table E BWBRE250
250mm 10" Galvanised Steel Flange Backing Ring Table E BWBRE250
$99.80
Excl. GST:
$90.73
Excl. GST:
Code : 1659519
The Galvanised Steel Backing Ring Table E PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Outside Diameter 405mm
Inside Diameter 288mm
Thickness 22mm
PCD 356mm
Bolt Size M20
Outside Diameter 405mm
Inside Diameter 288mm
Thickness 22mm
PCD 356mm
Bolt Size M20
Details
250mm 10" Galvanised Steel Flange Backing Ring Table E BWBRE250 PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Downloads
Free Shipping
Most Area's Over $300
- SKU
- 1659519
- Size
- 250
