Elson Inline Pressure Reduction Valve 500kPA Adjustable 20mm Female BSP LF76014 are fitted in water systems to moderate and stabilize mains water pressure, which is at times too high for domestic appliances.

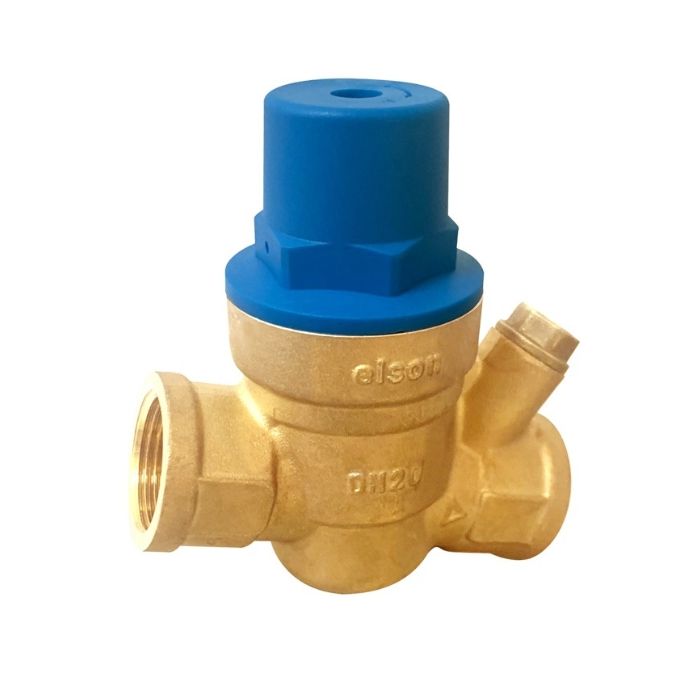

Elson Inline Pressure Reduction Valve 500kPA Adjustable 20mm Female BSP LF76014
$46.33
Excl. GST:
$42.12
Excl. GST:
Code : 1615269
-
Buy 10 for $37.84 $34.40 each and save $8.49 (Per Unit)10 for $37.84 $34.40 each
Pressure Reduction Valves are fitted in water systems to moderate and stabilize mains water pressure, which is at times too high for domestic appliances. The valves are pre-set at 500kPa which is the most widely used setting for domestic appliances. However the pressure reduction valves can be easily adjusted to suit your needs from a range of 150kPa to 600kPa.
Max. Inlet Pressure 1600kPа
Max. Inlet Temperature (Continuous) 80°C
Factory set pressure: 500kPa
Adjustable Outlet Pressure 150-600kPa
Flow Rates: 150kPa-18 L/Min; 600kPa-110 L/Min
Material: DR Brass in compliance with AS 2345
Threads comply with AS 1722.2.
Suitable for potable water, Comply with AS/NZS 4020.
WaterMark Certificate No. WMK26481. Conforms with AS1357.2
99.9% LEAD FREE DR BRASS
Valve and strainer can be serviced
Outlet for pressure gauge 6mm 1/4" BSP
Max. Inlet Pressure 1600kPа
Max. Inlet Temperature (Continuous) 80°C
Factory set pressure: 500kPa
Adjustable Outlet Pressure 150-600kPa
Flow Rates: 150kPa-18 L/Min; 600kPa-110 L/Min
Material: DR Brass in compliance with AS 2345
Threads comply with AS 1722.2.
Suitable for potable water, Comply with AS/NZS 4020.
WaterMark Certificate No. WMK26481. Conforms with AS1357.2
99.9% LEAD FREE DR BRASS
Valve and strainer can be serviced
Outlet for pressure gauge 6mm 1/4" BSP
Details
Elson Inline Pressure Reduction Valve 500kPA Adjustable 20mm Female BSP LF76014 are fitted in water systems to moderate and stabilize mains water pressure, which is at times too high for domestic appliances.
Free Shipping
Most Area's Over $300
- SKU
- 1615269
- Size
- 20
