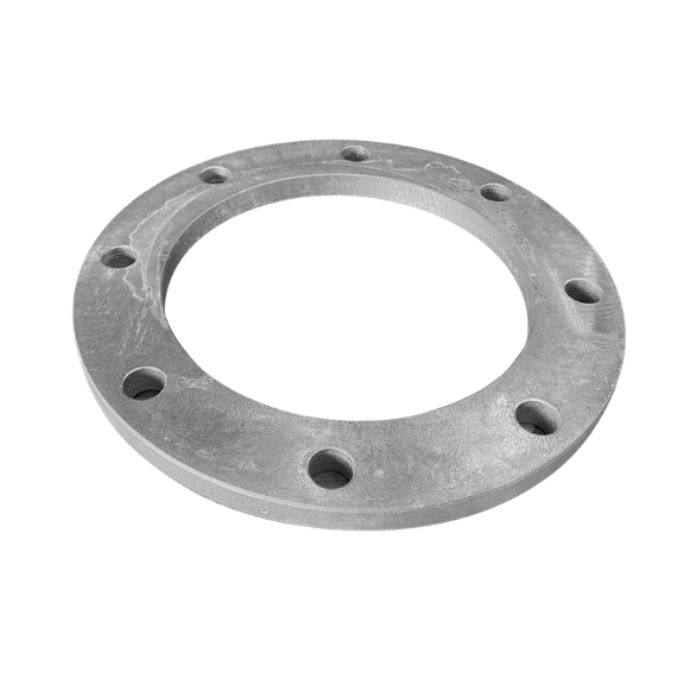

200mm 8" Galvanised Steel Flange Backing Ring Table E BWBRE200 PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
200mm 8" Galvanised Steel Flange Backing Ring Table E BWBRE200
$61.80
Excl. GST:
$56.18
Excl. GST:
Code : 1659517
The Galvanised Steel Backing Ring Table E PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Outside Diameter 335mm
Inside Diameter 235mm
Thickness 19mm
PCD 292mm
Bolt Size M20
Outside Diameter 335mm
Inside Diameter 235mm
Thickness 19mm
PCD 292mm
Bolt Size M20
Details
200mm 8" Galvanised Steel Flange Backing Ring Table E BWBRE200 PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Downloads
Free Shipping
Most Area's Over $300
- SKU
- 1659517
- Size
- 200
