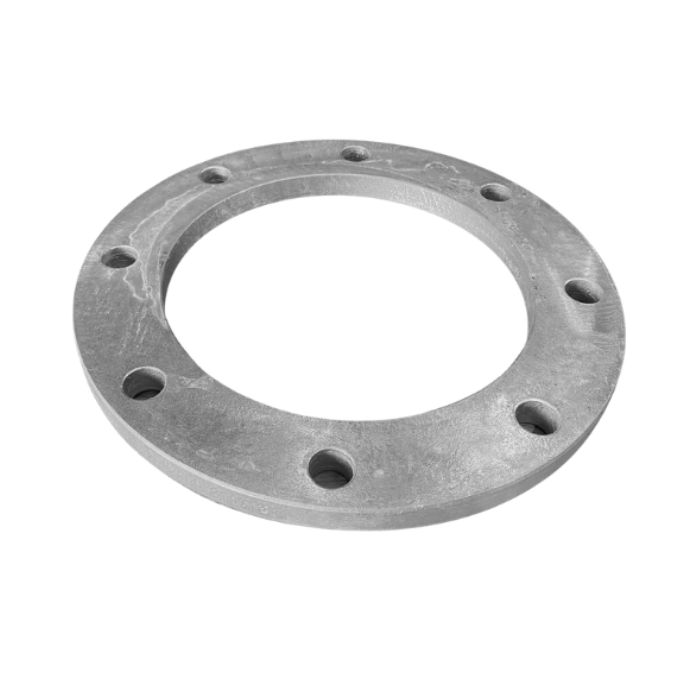

150mm 6" Galvanised Steel Flange Backing Ring Table E BWBRE160 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
150mm 6" Galvanised Steel Flange Backing Ring Table E BWBRE160
150mm 6" Galvanised Steel Flange Backing Ring Table E BWBRE160
$45.90
Excl. GST:
$41.73
Excl. GST:
Code : 1659516
The Galvanised Steel Backing Ring Table E PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Outside Diameter 280mm
Inside Diameter 178mm
Thickness 17mm
PCD 235mm
Bolt Size M20
Outside Diameter 280mm
Inside Diameter 178mm
Thickness 17mm
PCD 235mm
Bolt Size M20
Details
150mm 6" Galvanised Steel Flange Backing Ring Table E BWBRE160 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Downloads
Free Shipping
Most Area's Over $300
- SKU
- 1659516
- Size
- 150
