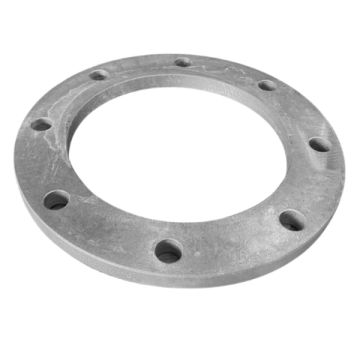

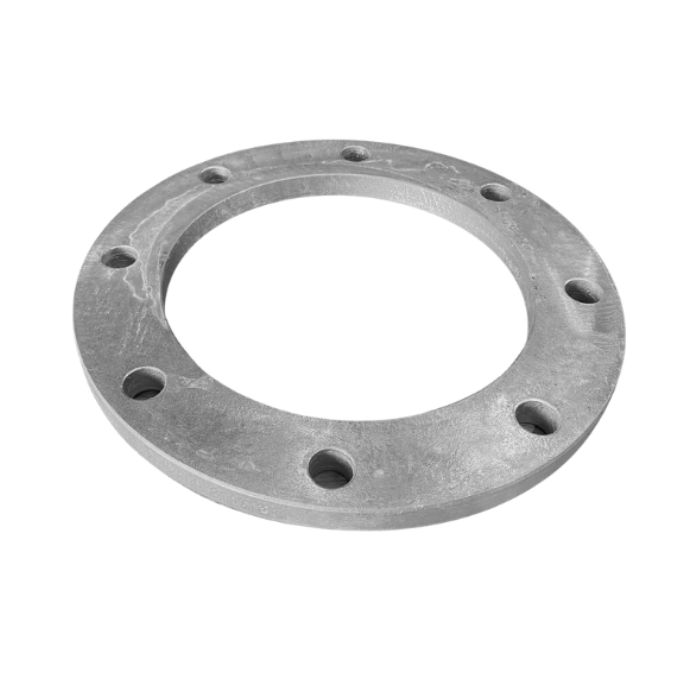

100mm Galvanised Steel Flange Backing Ring Table E BWBRE110 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
100mm Galvanised Steel Flange Backing Ring Table E BWBRE110
100mm Galvanised Steel Flange Backing Ring Table E BWBRE110
$21.50
Excl. GST:
$19.55
Excl. GST:
Code : 1659514
The Galvanised Steel Backing Ring Table E PN16 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Outside Diameter 215mm
Inside Diameter 128mm
Thickness 13mm
PCD 178mm
Bolt Size M16
Outside Diameter 215mm
Inside Diameter 128mm
Thickness 13mm
PCD 178mm
Bolt Size M16
Details
100mm Galvanised Steel Flange Backing Ring Table E BWBRE110 is a backing ring that has been designed for high pressure pipe applications and is used to join two ends of pipe with bolts. Also known as back up plates, backing rings hold the pipeline tightly to a valve or fitting.
Downloads
Free Shipping
Most Area's Over $300
- SKU
- 1659514
- Size
- 100
