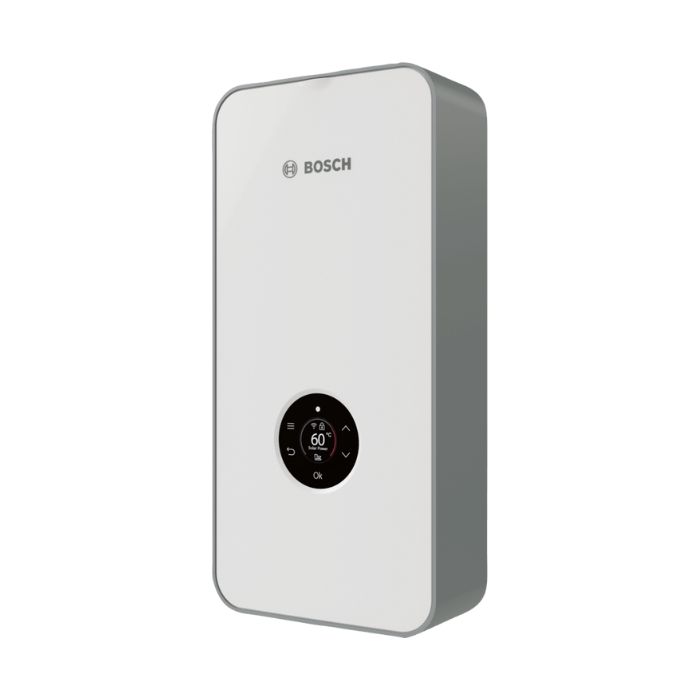

Bosch Tronic 8500i 18kW 60C Electric Instantaneous Hot Water Heater 3-Phase

Bosch Tronic 8500i 18kW 60C Electric Instantaneous Hot Water Heater 3-Phase is Bosch’s most advanced water heater, designed for maximum convenience and control. With integrated Wi-Fi, a multifunctional LED colour display, the AquaStop® water safety system, and features such as water and electricity consumption indicators, multiple temperature memory modes, and a child lock, it ensures top-tier performance and safety. The 8500i also offers quick installation via three simple steps, thanks to CLICKFIX 2.0

• Made in Europe for the highest quality and durability.
• Available in 60°C maximum water output temperature for multiple outlet applications.
• Built-in Wi-Fi for convenient smart device control through the Bosch HomeCom Easy app.
• Advanced, easy-to-use multifunctional LED colour display featuring temperature adjustment, consumption indicators for water and electricity, use-case temperature selection modes, childlock, and eco indication.
• Bare wire technology heats water faster with improved efficiency.
• Electronic air bubble detection helps prevent potential damage caused by air entering the system during installation.
• Same connection points as the most common three-phase electric instantaneous water heaters.
• Horizontal or vertical water fitting connection options for easy installation or replacement.
• An optional Wi-Fi Gateway kit accessory is available for convenient monitoring and control from smart devices.
• Three options for electrical supply connection location and a wall offset function
for easy cable routing

Part Number 7736507512
Rated output Power(415V) 19.4kW
Rated current (415V) 27A
Fuse Protection 32A
Switch on flow rate 2.5 L/min
Temperature settings Adjustable up to 60ºC.
Water connection 15mm 1/2" BSP
Max pressure 1000kPa
Height 484mm Width 236mm Depth 106mm Weight 3.8Kg

5 year parts and labour warranty when used in a residential application.
1 year parts and labour warranty for commercial application.

Bosch Tronic 415V 18kW Flow rate L/min
Temperature rise 25°C 11 L/m, 30°C 9 L/m, 35°C 8 L/m

Seasonal average ambient cold water inlet temp °C for Australia
Melbourne 15°C, Hobart 14°C, Canberra 14°C, Sydney 18°C, Brisbane 18°C, Adelaide 18°C, Perth 20°C, Townsville/Darwin 25°C
