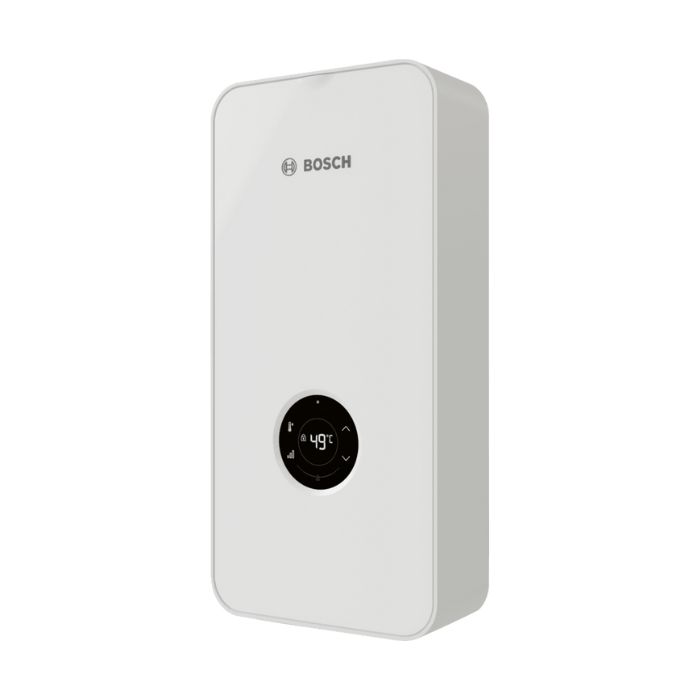

Bosch Tronic 7000 27kW 50C Electric Instantaneous Hot Water Heater 3-Phase

Bosch Tronic 7000 27kW 50C Electric Instantaneous Hot Water Heater 3-Phase is an advanced water heater designed for maximum performance, efficiency, and user adjustability via a multifunctional display. It incorporates the unique AquaStop® water safety system, which protects against water damage by automatically shutting off the cold water inlet if a leak is detected. Additionally, the CLICKFIX 2.0 installation technology enables quick installation in just three easy steps.

• Made in Europe for the highest quality and durability.
• Available in 50°C and 60°C maximum water output temperatures.
• Modern multifunctional display with temperature adjustment, consumption indicator, child lock, and four temperature memory modes.
• Bare wire technology heats water faster with improved efficiency.
• Electronic air bubble detection helps prevent potential damage caused by air entering the system during installation.
• Same connection points as the most common three-phase electric instantaneous water heaters.
• Horizontal or vertical water fitting connection options for easy installation or replacement.
• Three options for electrical supply connection location and a wall offset function for easy cable routing.
• Optional Wi-Fi Gateway Kit accessory available for convenient smart device monitoring and control

Part Number 7736507509
Rated output Power(415V) 27.5kW
Rated current (415V) 39.7A
Fuse Protection 40A
Switch on flow rate 2.5 L/min
Temperature settings Adjustable up to 50ºC
Water connection 15mm 1/2" BSP
Max pressure 1000kPa
Height 484mm Width 236mm Depth 106mm Weight 3.8Kg

5 year parts and labour warranty when used in a residential application.
1 year parts and labour warranty for commercial application.

Bosch Tronic 415V 27kW Flow rate L/min
Temperature rise 25°C 16 L/m, 30°C 13 L/m, 35°C 11 L/m

Seasonal average ambient cold water inlet temp °C for Australia
Melbourne 15°C, Hobart 14°C, Canberra 14°C, Sydney 18°C, Brisbane 18°C, Adelaide 18°C, Perth 20°C, Townsville/Darwin 25°C
