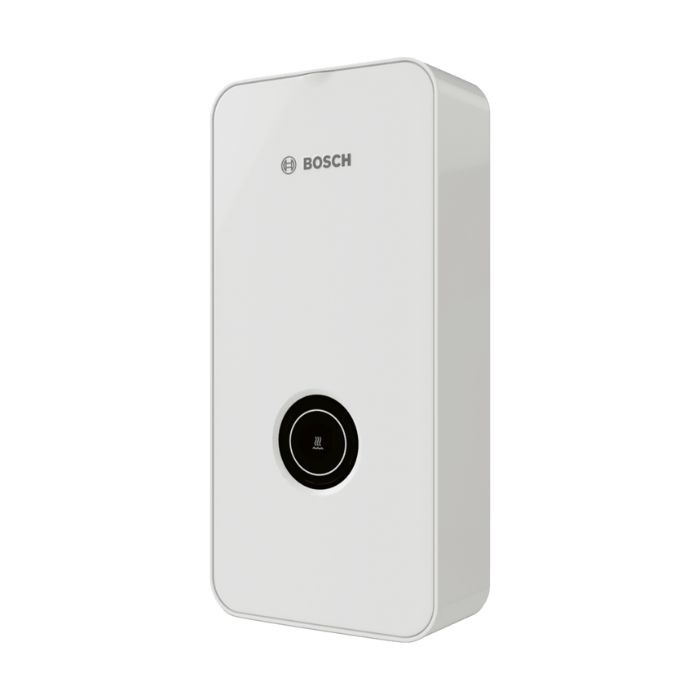

Bosch Tronic 4000 18kW 50C Electric Instantaneous Hot Water Heater 3-Phase

Bosch Tronic 4000 18kW 50C Electric Instantaneous Hot Water Heater 3-Phase is a cost-effective water heater that reliably delivers a constant supply of hot water. Thanks to innovative CLICKFIX 2.0 installation technology, appliances can be installed quickly and easily in just three steps. Electronically controlled bare wire technology heats water faster with improved efficiency.

Made in Europe for the highest quality and durability.
Simple digital display with an LED status light and error notification, with no operating interaction required.
Preset 50°C temperature limit eliminates the need for an external tempering valve.
Electronic air bubble detection helps prevent potential damage caused by air entering the system during installation.
Same connection points as the most common three-phase electric instantaneous water heaters.
Horizontal or vertical water fitting connection options for easy installation or replacement.

Part Number 7736507506
Rated output Power(415V) 19.4kW
Rated current (415V) 27A
Fuse Protection 32A
Switch on flow rate 2.5 L/min
Temperature settings 50°C Not Adjustable.
Water connection 15mm 1/2" BSP
Max pressure 1000kPa
Height 484mm Width 236mm Depth 106mm Weight 3.3Kg

5 year parts and labour warranty when used in a residential application.
1 year parts and labour warranty for commercial application.

Bosch Tronic 415V 18kW Flow rate L/min
Temperature rise 25°C 11 L/m, 30°C 9 L/m, 35°C 8 L/m

Seasonal average ambient cold water inlet temp °C for Australia
Melbourne 15°C, Hobart 14°C, Canberra 14°C, Sydney 18°C, Brisbane 18°C, Adelaide 18°C, Perth 20°C, Townsville/Darwin 25°C
