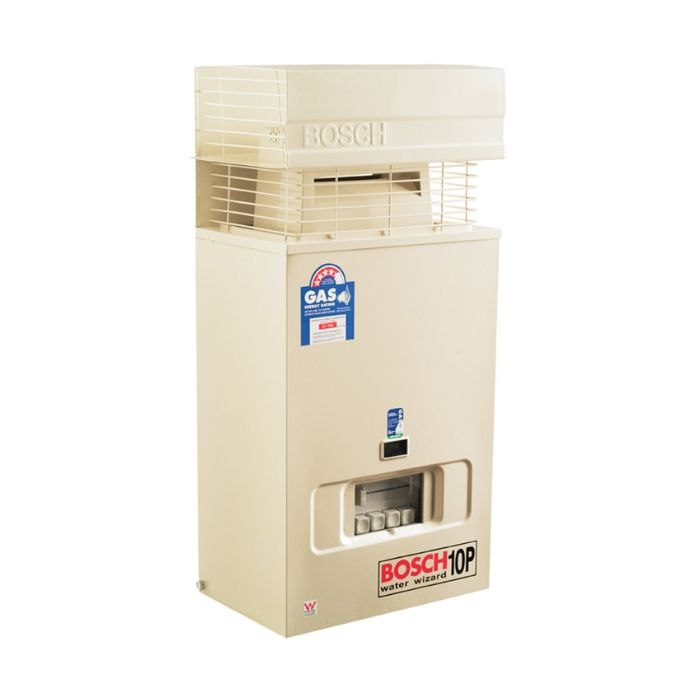

Bosch TF250NG1TH 10 Litre NATURAL GAS Hot Water Heater With Pilot Light 10P

The Bosch Pilot range is built for those who value simplicity and proven technology. With a standing pilot light for ignition and continuous flow heating, these external systems provide steady and consistent hot water without the need for electronics or batteries.

Reliable pilot ignition system
Compact, durable outdoor design
No electrical connection or batteries required
External installation
Star Rating 4.6
Suitable for NATURAL GAS
Built to last with over 30 years of proven performance
Maximum water pressure 1200kPa
Nominal Gas Consumption 82 MJ/h
Water Connection 15mm 1/2" BSP
Gas Connection 20mm 3/4" BSP
Min Flow 3.2 L/min
Height 845mm Width 405mm Depth 265mm Weight 21Kg
Part Number 9707061030
Warranty – domestic use 2 years parts and labour, 10 year heat exchanger.

Temperature selector in fully clockwise position
Temperature rise (Above incoming water temperature) 50°C
Water flow range (Litres per minute) L/min 3.5 to 4.5

Temperature selector in fully anti-clockwise position
Temperature rise (Above incoming water temperature) 25°C
Water flow range (Litres per minute) L/min 4 to 10

See Download for installation & operating instructions
