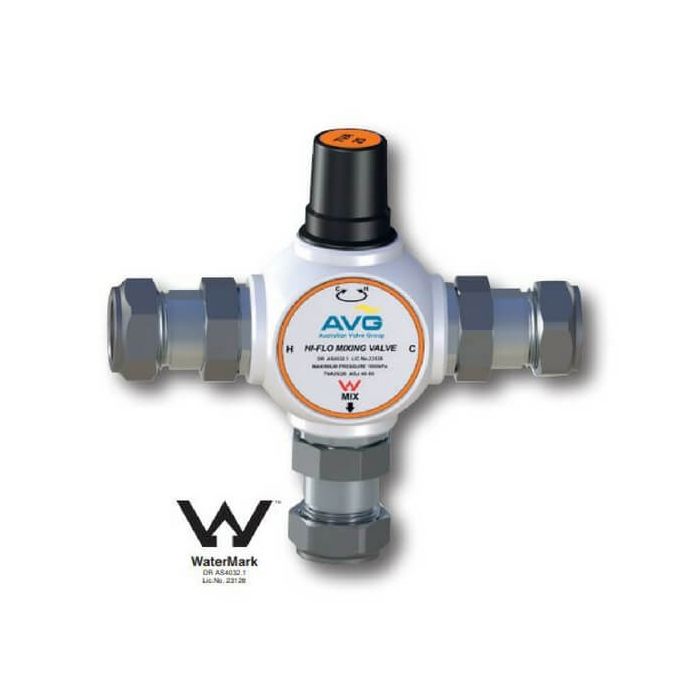

AVG 25mm 1" Tempering Valve Hi Flo Copper Olive TVA25-HF

$364.35
$331.23
Code : 1631744
Polymer Thermostatic cartridge
25mm 1" Inlet and Outlet
Check valve assemblies Polymer Body, stainless steel filter, silicone seals
Temperature adjustment range 35°C - 65°C (Disinfection setting) Legionella control
Temperature control +/- 2C
Maximum pressure 1000 Kpa
Dynamic pressure range 20 Kpa - 500 Kpa
Minimum flow rate 4 litres/min
WaterMark Lic #23128
Refer download below for more information

Details

AVG 25mm 1" Tempering Valve Hi Flo Copper Olive TVA25-HF can be supplied as a TMV or a TVA. Valve is supplied with high temperature low opening energy check valve filter assemblies making it perfect for low pressure installations. The HI-FLO range is supplied tested with the outlet temperature pre set; each thermostatic cartridge is subjected to cold water shut off test as part of the test procedure. Proudly Australian made and ideal for low pressure applications. Just add water the HI FLO mixing valve comes pre assembled in one piece, tested and ready to install. Suitable for low pressure installations and multiple outlet installations. The HI FLO comes supplied tested with the mixed water outlet temperature pre set. Each valve cartridge is subjected to cold water shut off test as part of the test procedure. Quick and easy serviceable hot and cold filter and check valve assemblies and thermostatic cartridge.
