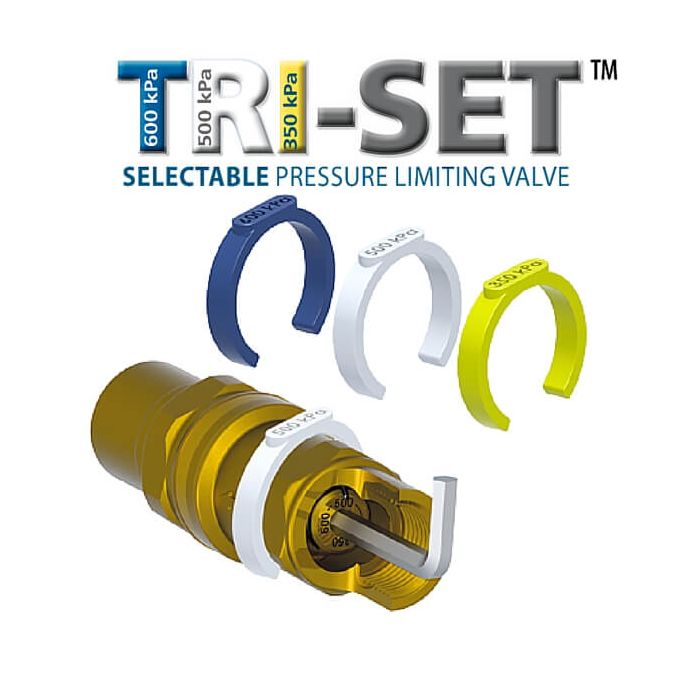

The TRI-SET range has three selectable pressure settings within the one compact valve, 350, 500 and 600kPa. The valve is manufactured from durable DR brass and the internal waterways have been engineered to give optimum flow characteristics.
By turning the Allen key provided the valve can be adjusted to 600kPa (clockwise) and 350kPa (anti-clockwise). The adjustment screw will locate onto a shoulder when in the correct position and the pressure setting can visually be determined by the alignment of the set position mark and the values on the adjustment screw.
20mm 3/4" OD Copper Olive Compression Connection
Valves must not be buried directly in the ground.
Valves can be installed in suitable approved box in the ground
No vent hole design
Suitable for enclosed spaces, cupboards & under sinks
Dezincification resistant brass
Suitable for vertical and horizontal installation
Comes preset at 500 kPa
Max Inlet Pressure 1800 kPA
Max Operating Temp 80°C
AS 1357.2
WATERMARK lic no. 2639
Must be installed by a licensed Plumber as per the manufacturers instructions
20mm Triset Pressure Limiting Valve 3/4" Olive Compression AVG PLV20C has three selectable pressure settings within the one compact valve, 350, 500 and 600kPa Suitable for vertical and horizontal installation.
